The maximum memory capacity on this server is 6TB when all 24x DDR5 DIMM slots are populated by 256GB 3DS RDIMM modules. Designed for intensive applications such as AI training, AI inference, and visual computing, the 4U Gigabyte G593-ZX1 GPU Server supports 8x AMD Instinct MI300X OAM GPU modules. Dual CPU sockets on the system board are compatible with AMD EPYC 9004 Series processors including those with AMD 3D V-Cache Technology. On the front of the server, there are 8x 2.5-inch Gen5 NVMe hot-swappable drive bays.
The Gigabyte G593-ZX1 server houses up to 2x AMD EPYC 9004 Series processors and 8x AMD Instinct MI300X OAM GPU modules, making it ideal for AI and high-performance computing workloads. Processor choices are limited to those with a 300W thermal design point (TDP), with conditional support of up to 400W in limited conditions. Options include CPUs with up to 128x physical cores and 256x virtual threads. Each CPU socket is connected to a single M.2 PCIe Gen3 slot, for a total of two on the system board. They are ideal for fast access storage needs or OS installation.

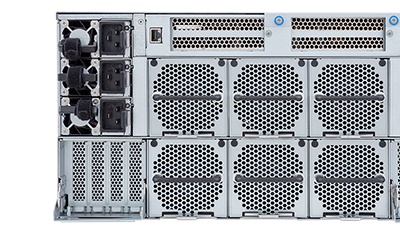

GPUs on this system are housed on a seperate GPU board and connected to each other via AMD’s Infinity Fabric technology. For additional input/output functionality, there are 4x full-height, half-length PCIe Gen5 x16 slots and 8x low-profile Gen5 x16 slots. Dual 10Gb/s Base-T LAN ports are available on the rear of the server along with a dedicated management port. The management port grants access to the Aspeed AST2600 baseboard management controller (BMC), providing remote management capabilities for the system. This system is powered by 6x 3000W 80 Plus Titanium power supplies, 2x of which are for redundancy.
Gigabyte G593-ZX1 GPU Server - Specifications
Processor - 2 Sockets
AMD EPYC 9004 Series processors
AMD EPYC 9004 Series processors with AMD 3D V-Cache Technology
Up to 128-core, 256 threads per processor
cTDP up to 300W
* cTDP supported up to 400W under limited thermal conditions.
Socket:
2 x LGA 6096
Socket SP5
Motherboard
MZB3-G43
Memory
Memory Slots:
24 x DIMM slots
12-Channel memory architecture
Memory Type:
RDIMM
3DS RDIMM
Memory Speed:
Up to 4800 MHz
DIMM Module Sizes:
RDIMM: Up to 96GB supported
LRDIMM: Up to 256GB supported
Drive Bays
8 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89104
LAN
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
Front:
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear:
1 x MLAN
Backplane Board:
Speed and bandwidth: PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Supports 8 x AMD Instinct MI300X OAM GPU modules
PCIe:
8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
