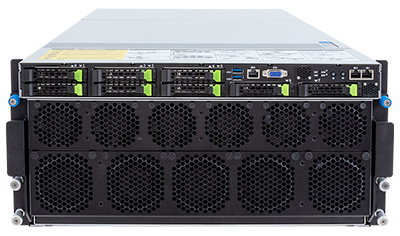

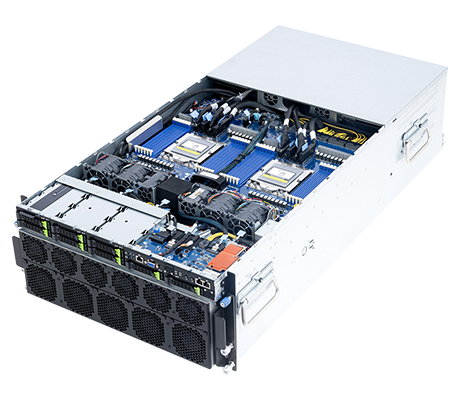

Designed for AI, visual computing, and high-performance computing, the Gigabyte G593-ZX2 GPU Server is housed in a 5U chassis. Up to 2x AMD EPYC 9004 Series processors can be installed on this server plus 8x AMD Instinct MI300X OAM GPU modules. Fully configured at maximum memory capacity, this server will support up to 16TB of DDR5 memory. There are 8x 2.5-inch Gen5 NVMe hot-swappable drive bays accessible from the front.
Each CPU socket houses 12x DDR5 DIMM slots for a total of 24x DIMM slots on the system board. With support from up to 8x high-performance AMD Instinct GPUs, the Gigabyte G593-ZX2 server is ideal for workloads in AI, AI Inference, and AI Training. The AMD EPYC 9004 Series processors are limited to those with a thermal design point (TDP) of 300W, and conditional support for those of up to 400W under limited thermal conditions. CPU options include standard CPUs code name Genoa with up to 96 cores, Genoa-X featuring 3D V-Cache Technology with up to 1125MB of L3 cache, and Bergamo CPUs delivering the highest core count at up to 128 cores. Each CPU is connected to a single M.2 PCIe Gen3 slot, for two total, which can be used for fast access storage needs or OS installation.

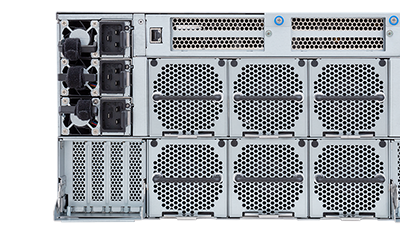

The GPUs are housed on a separate GPU board supporting AMDs 4th generation Infinity Fabric. For additional I/O, storage, or PCIe cards, there are 4x FHHL PCIe Gen 5.0 x16 slots, and 8x LP Gen 5.0 x16 slots. Dual 10Gb/s Base-T LAN ports via Intel X710-AT2 can be found on this system along with a single dedicated management port. The Aspeed AST2600 baseboard management controller (BMC) is accessed by the dedicated management LAN port and provides remote management of the system. Powering this system are 6x 3000W 80 Plus Titanium power supplies, 2x of which are for redundancy.
Gigabyte G593-ZX2 GPU Server - Specifications
Processor - 2 Sockets
AMD EPYC 9004 Series processors
AMD EPYC 9004 Series processors with AMD 3D V-Cache Technology
Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C
* cTDP supported up to 400W under limited thermal conditions
Socket:
2 x LGA 6096
Socket SP5
Motherboard
MZB3-G43
Memory
Memory Slots:
24 x DIMM slots
12-Channel memory architecture
Memory Type:
RDIMM
3DS RDIMM
Memory Speed:
Up to 4800 MHz
DIMM Module Sizes:
RDIMM: Up to 96GB supported
LRDIMM: Up to 256GB supported
Drive Bays
8 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89104
LAN
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
Front:
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear:
1 x MLAN
Backplane Board:
Speed and bandwidth: PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Supports 8 x AMD Instinct MI300X OAM GPU modules
PCIe:
8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
