Gigabyte H252-Z10 Server

The 24-bay Gigabyte H252-Z10 server features 4x nodes, each with a single AMD EPYC 7002/7003 series processor. Each of the nodes can be outfitted with up to 2TB of DDR4 memory with 6x of the 24x 2.5" NVMe/SATA hot-swappable SSD bays assigned per node. A total of 32x DIMMs can be found in the 2U platform, plus 8x M.2 PCIe Gen3 x4 slots supporting 2242, 2260, 2280, or 22110 cards. This server is powered by dual 2000W redundant 80 PLUS Platinum power supplies.
Configure

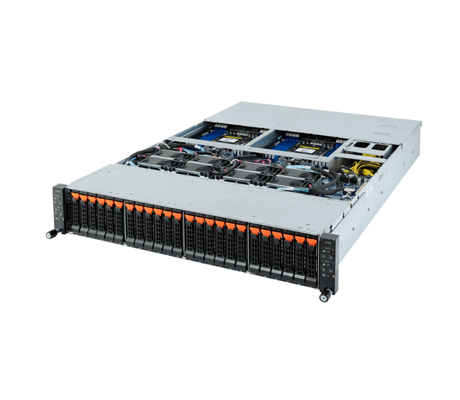

Gigabyte H252-Z10 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H252-Z10 Server - System Overview

As a high-density server, the H252-Z10 is ideal for testing and development, file storage, and edge computing. This machine also supports 4x OCP 2.0 Gen3 x16 mezzanine slots, 8x low profile PCIe x16 expansion slots, and 4x dedicated management ports, split between the 4x compute nodes. There are 2 revisions of this platform with support for different AMD EPYC CPU generations and memory capacities.

Gigabyte H252-Z10 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family

Gigabyte H252-Z10 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

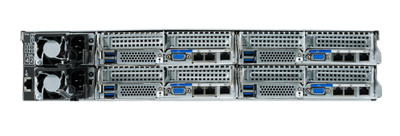

Gigabyte H252-Z10 rear Gigabyte H252-Z10 node

Gigabyte H252-Z10 Server - Specifications

Processor - 1 Socket (Per Node)

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 225W, cTDP up to 240W

    • Socket:

  • 1 x LGA 4094

    • Chipset:

  • System on Chip

Motherboard

  • MZ12-HD0

Memory (Per Node)

    Memory Slots

  • 8x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM

    • Memory Speed

  • Up to 3200MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 6 x 2.5" NVMe/SATA hot-swappable SSD bays
  • All storage bays are compatible with SATA devices

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • NCSI function supported
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 2 x M.2 Slot
  • 1 x USB 3.0 header
  • 1 x TPM header
  • 1 x OCP 2.0 mezzanine slot
  • 1 x Front Panel header
  • 1 x Back plane board header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots (Per Node)

  • 1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus)
  • 1 x Low profile half-length slot with PCIe x16 (Gen3 x16 bus)
  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

    • 2x M.2 Slots

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 87.5mm (3.444 in)

    Width: 440mm (17.322 in)

    Depth: 695mm (27.362 in)

Power Supply

  • 2 x 2200W redundant 80 PLUS Platinum power supply

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H252-Z10 Server - Documentation

Gigabyte H252-Z10 Server User Manual Gigabyte H252-Z10 Server Data Sheet Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
