Gigabyte H252-Z12 Server

Based on a single AMD EPYC 7002 or 7003 series processor, the 4-node Gigabyte H252-Z12 server delivers up to 64 cores and 128 threads per node, with a cTDP of up to 240W. The 2U system has up to 8TB of DDR4 memory when all 32x memory slots are filled with 256GB 3DS RDIMM or 3DS LRDIMM modules. Half of this capacity is available using standard 128GB RDIMM or LRDIMM modules. Each node supports 3x of the 12x 3.5” SATA hot-swappable bays on the front panel. Under the hood, the platform offers 8x low profile PCIe x16 expansion slots and 8x M.2 PCIe Gen3 x4 slots.
Configure

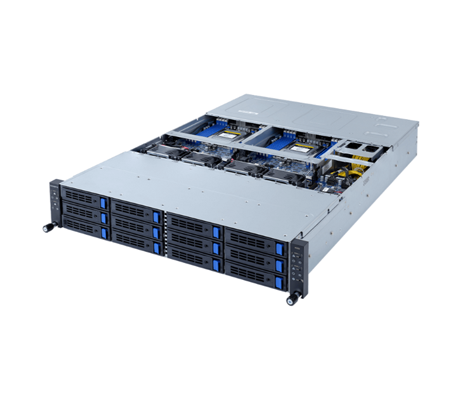

Gigabyte H252-Z12 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H252-Z12 Server - System Overview

The H252-Z12 server can be used for file storage, edge computing, and more. It’s powered by dual 1600W redundant 80 PLUS Platinum PSUs and can be managed by the Aspeed AST2500 management controller or Gigabyte Management Console (AMI MegaRAC SP-X) web interface. Furthermore, this device provides 4x dedicated management ports, 4x OCP 2.0 Gen3 x16 mezzanine slots, and 1x CMC global management port.

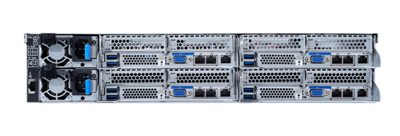

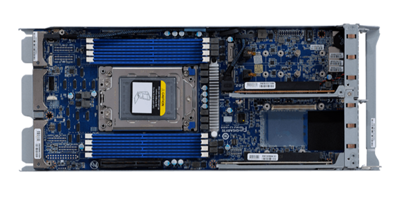

Gigabyte H252-Z12 rear Gigabyte H252-Z12 node

Available Configurations

Explore available configurations for the Gigabyte H252-Z12 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H252-Z12 Server - Specifications

Processor - 1 Socket (Per Node)

  • AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 225W, cTDP up to 240W
  • Conditional support 280W Non-supported M.2 devices if using 280W CPU

    • Socket:

  • 1 x LGA 4094

    • Chipset:

  • System on Chip

Motherboard

  • MZ12-HD8 Rev. 3.0

Memory (Per Node)

    Memory Slots

  • 8x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 3x 3.5" SATA hot-swappable SSD bays

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • NCSI function supported
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 2 x M.2 Slot
  • 1 x USB 3.0 header
  • 1 x TPM header
  • 1 x OCP 2.0 mezzanine slot
  • 1 x Front Panel header
  • 1 x Back plane board header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

  • 1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus)
  • 1 x Low profile half-length slot with PCIe x16 (Gen3 x16 bus)
  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

    • 2x M.2 Slots

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 87.5mm (3.444 in)

    Width: 440mm (17.322 in)

    Depth: 695mm (27.362 in)

Power Supply

  • 2 x 1600W redundant 80 PLUS Platinum power supply

System Fans

  • 4 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
