Gigabyte H261-Z60 Server

The 4-node Gigabyte H261-Z60 server is a high-density platform powered by 8x AMD EPYC processors from the 7001, 7002, or 7003 series families. Depending on the revision, The CPUs will each provide 8x to 64x cores. An 8-channel memory architecture provides up to 8TB of memory when all 64x DDR4 DIMM slots are filled with 128GB RDIMM or LRDIMM memory modules. Each node supports 6x 2.5" SATA hot-swappable bays or 4x 2.5" SATA/SAS hot-swappable bays with a SAS RAID Card, for a total of 24x 2.5” drive bays in the 2U chassis.
Configure

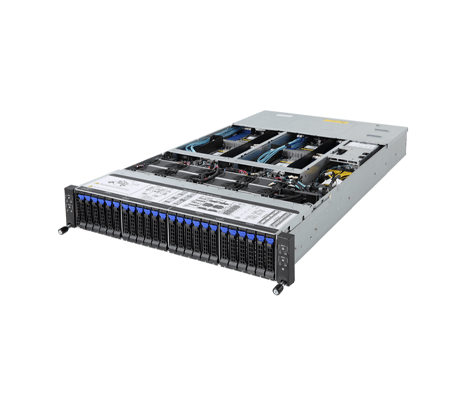

Gigabyte H261-Z60 Server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H261-Z60 Server - System Overview

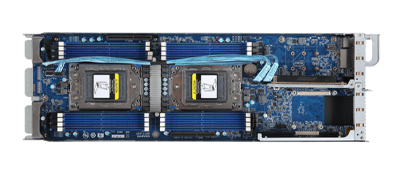

Gigabyte H261-Z60 node Under the hood, the motherboard has 2x M.2 PCIe Gen3 x4 slots for cards in the 2242, 2260, 2280, and 22110 form factors. The maximum CPU TDP while utilizing an M.2 device is 120W as opposed to 200W. Designed for Hyper-converged Infrastructure (HCI), hybrid and Private Cloud applications, the H261-Z60 server is powered by a dual 2200W 80 PLUS Platinum redundant power supply. At 2U, each node offers 2x low-profile PCIe Gen3 x16 slots, as well as 1x OCP mezzanine slot with PCIe Gen3 x16 bandwidth.

Gigabyte's management software provides Administrators access to sensors, event logs, remote access, and more, and are accessible through the pre-installed Gigabyte management portal (AMI MegaRAC SP-X). An Aspeed CMC (Central Management Controller) is included with Gigabyte's High-Density series servers for chassis-level management and node-level monitoring. Because only one MLAN connection is required to monitor all 4x nodes, less Top of Rack (ToR) cabling and switch connections are required. Each of the server nodes also has a dedicated RJ45 management port. Gigabyte H261-Z60 rear

Available Configurations

Explore available configurations for the Gigabyte H261-Z60 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H261-Z60 Server - Specifications

Processor - 2 Sockets (per node)

  • Dual Processor per node
  • Socket: 2x LGA 4094
  • 7001, 7002, 7003 series AMD EPYC processors
  • Up to 64-core, 128 threads per processor
  • TDP up to 200W

    • Chipset:

  • System on Chip

Motherboard

  • MZ61-HD0

Memory (per node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • Memory speed: 3200/2933 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 128GB supported
  • LRDIMM modules up to 128GB supported
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

Drive Bays (per node)

  • 6 x 2.5" SATA hot-swappable bays OR
  • 4 x 2.5" SATA/SAS hot-swappable bays with SAS RAID Card

LAN (per node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x Dedicated management port
  • 1 x 10/100/1000 *CMC port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (per node)

    Internal

  • 2 x M.2 slots
  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x PLD header
  • 1 x Clear CMOS jumper
  • 1 x IPMB connector

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 1 x RJ45
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • Backplane

  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with LPC interface
  • Optional TPM2.0 kit: CTM000

Expansion Slots (per node)

  • 2 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0

  • 1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_0
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 120W if using M.2 device

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_1
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 120W if using M.2 device

Chassis

    Enclosure

    Height: 87 mm

    Width: 440 mm

    Depth: 820 mm

Power Supply

  • 2 x 2200W 80 PLUS Platinum redundant power supplies

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H261-Z60 Server - Documentation

Gigabyte H261-Z60 Server Data Sheet Gigabyte H261-Z60 Server User Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide Gigabyte H261-Z60 Qualification Vender List
