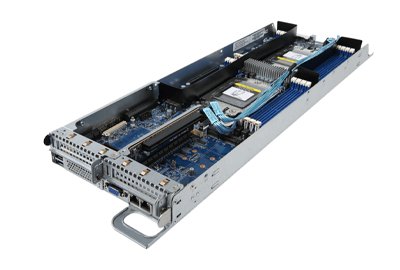

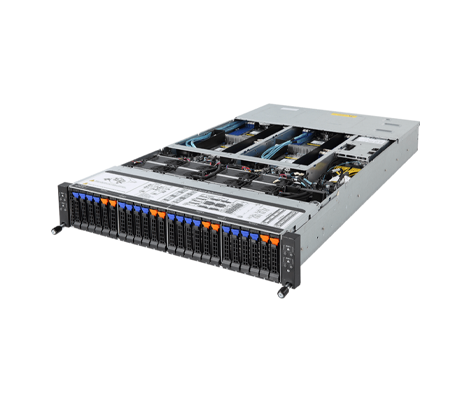

At 2U, the Gigabyte H261-Z61 server houses 4x nodes with rear access. Each node supports 2x AMD EPYC 7001, 7002, or 7003 series processors, depending on the revision, with up to 64 cores, 128 threads, and a TDP of up to 200W. The system provides a total of 8TB of memory when all 64x DIMM slots are populated with RDIMM or LRDIMM modules with up to 128GB. 2x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays and 4 x 2.5" SATA/SAS hot-swappable bays are supported per node. Similarly, there are 2x M.2 PCIe Gen3 x4 slots on the motherboard for 2242, 2260, 2280, and 22110 form factor cards. CPU TDP is limited to 120W if using a M.2 device.

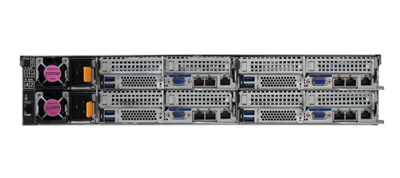

There are 8x expansion slots in the platform altogether, with each server node offering 2x low-profile PCIe Gen3 x16 slots, as well as 1x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth.Designed for hybrid and private cloud server applications, each node on the high-density H261-Z61 server features 2 x 1GbE LAN ports and a single dedicated management port, which can be accessed through the rear of the chassis.
The integrated Gigabyte management port (AMI MegaRAC SP-X) on each server node provides access to the Baseboard Management Controller (BMC) for event logs, remote access, sensor logs, inventory, and more. For chassis-level management and node-level monitoring Gigabyte’s H-Series servers have an Aspeed CMC (Central Management Controller). This results in fewer Top of Rack (ToR) cabling and switch connections because only one MLAN connection is needed to monitor all 4x nodes. This platform can also leverage the Gigabyte Server Management software suite for managing several servers or large clusters of server. To power the system, there are dual 2200W 80 PLUS Platinum redundant power supplies on the back of the machine.
Gigabyte H261-Z61 Server - Specifications
Processor - 2 Sockets (per node)
Dual Processor per node
Socket: 2x LGA 4094
7001, 7002, 7003 series AMD EPYC processors
Up to 64-core, 128 threads per processor
TDP up to 200W
Chipset:
System on Chip
Motherboard
MZ61-HD0
Memory (per node)
Memory Slots
16x DDR4 DIMM slots
8-Channel memory architecture
Memory Speed
Memory speed: 3200/2933 MHz (depends on CPU)
DIMM Module Sizes
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Drive Bays (per node)
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
LAN (per node)
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
1 x 10/100/1000 *CMC port
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output (per node)
Internal
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Rear
2 x USB 3.0
1 x VGA
1 x RJ45
1 x RJ45 MLAN
1 x ID LED
Backplane
Speed and bandwidth: PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Expansion Slots (per node)
2 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0
1 x M.2 slot: PCIe Gen3 x4, from CPU_0
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 120W if using M.2 device
1 x M.2 slot: PCIe Gen3 x4, from CPU_1
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 120W if using M.2 device
Chassis
Enclosure
Height: 87 mm
Width: 440 mm
Depth: 820 mm
Power Supply
2 x 2200W 80 PLUS Platinum redundant power supplies
System Fans
8 x 80x80x38mm (16,300rpm)
System Management
Aspeed AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
