Gigabyte H262-NO1 Server

At 2U, the Gigabyte H262-NO1 server supports 4x nodes, each with dual 3rd generation Intel Xeon Scalable processors with up to 40 cores per CPU. In total, there are 64x DIMM slots and 16x slots per node supported by an 8-channel memory architecture. Chassis-wide, a maximum of up to 16TB of memory can be installed when filling the memory slots with 256GB 3DS RDIMMs or 3DS LRDIMMs. The system supports up to 8TB of RAM with standard 128GB RDIMMs and LRDIMMs. Along with standard DDR4 memory modules, this system delivers accelerated performance with Intel Optane Persistent memory 200 series modules.
Configure

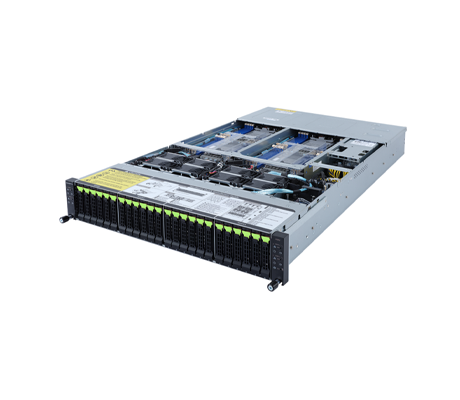

Gigabyte H262-NO1 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-NO1 Server - System Overview

On the front panel, the H262-NO1 server holds a total of 24x SATA, SAS, or Gen4 NVMe hot-swappable drive bays. Under the hood all nodes combined, the hyper-converged system delivers 8x half-length, low-profile PCIe 4.0 x16 slots, plus 4x OCP 3.0 mezzanine slots with a PCIe Gen4 x16 bus. Each node has its own dedicated management port, but the system also features a Chassis Management Controller (CMC) port for global management of the system.

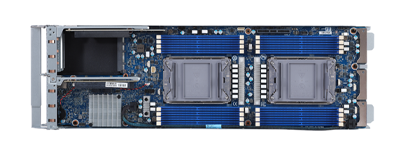

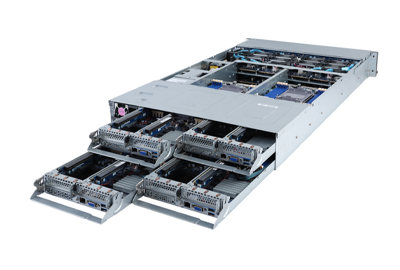

Gigabyte H262-NO1 rear Gigabyte H262-NO1 node

Gigabyte H262-NO1 Server - Specifications

Processor - 2 Sockets (Per Node)

  • 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • 10nm technology, CPU TDP up to 270W

    • Socket:

  • 2 x LGA 4189, Socket P+

    • Chipset:

  • Intel C621A Chipset

Motherboard

  • MH62-HD2

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS LRDIMM
  • 3DS RDIMM

    • Memory Speed

  • 1.2V modules: 3200/2933/2666 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 6 x SATA/SAS/Gen4 NVMe hot-swappable bays
  • SAS card is required for SAS devices support

LAN (Per Node)

  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x COM header
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRSH01H:

  • 1 x Half-length low-profile slot with PCIe x16 (Gen4 x16 bus)
    • Riser Card CRSH01E:

  • - 1 x Half-length low-profile slots with PCIe x16 (Gen4 x16 bus)

  • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

Chassis

    Enclosure

    Height: 87.5mm (3.444 in)

    Width: 440mm (17.322 in)

    Depth: 840mm (33.070 in)

Power Supply

  • 2 x 2200W redundant 80 PLUS Platinum power supply

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-NO1 Server - Documentation

Gigabyte H262-NO1 Server User Manual Gigabyte H262-NO1 Server Data Sheet Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
