Gigabyte H262-P60 Server

The high-density Gigabyte H262-P60 Server features 4x compute nodes, and is designed for high-performance computing, hyper-converged infrastructure, and hybrid or private cloud computing applications. Each node can house up to 2x Ampere Altra Max or Ampere Altra processors with up to 128 cores and 16x DDR4 DIMM slots. Fully configured, the maximum memory capacity per node is 8TB for up to 32TB system wide. 24x 2.5-inch front mounted, hot-swap SATA drive bays are evenly divided between the four nodes. Node expansion can be achieved via 2x PCIe x16 Gen4 low-profile slots.
Configure

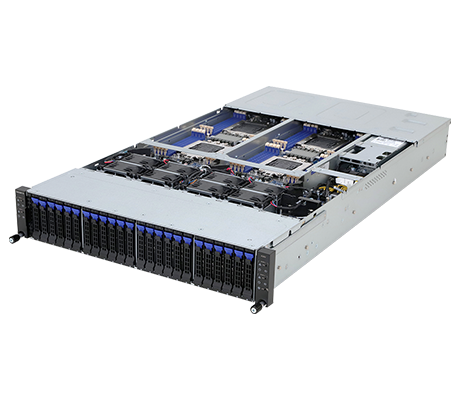

Gigabyte H262-P60 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-P60 Server - System Overview

Additional Information

Gigabyte H262-P60 front detail

Due to hardware limitations, the thermal design power (TDP) for CPUs installed on this system is limited to 190W. That includes CPU options with 128x physical cores. For support of the operating system or fast access storage needs each node has a single PCIe 4.0 x4 slot for an M.2 drive preserving the 6x 2.5-inch SATA drive bays assigned to each node. Across the system, there are a total of 8x PCIe x16 Gen4 low-profile slots for additional I/O controllers.

Gigabyte H262-P60 detail top

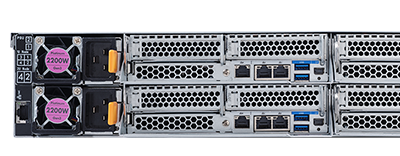

Powering the Gigabyte H262-P60 Server are dual 2200W 80 PLUS Platinum power supplies in a redundant configuration. Each node has access to 2x 1GbE LAN ports, one of which being an Intel I350-AM2 port as well as a dedicated management port. There is a single chassis management controller port allows Administrators to monitor the status of all the compute nodes in the chassis, reducing clutter, switches, and hardware costs. Remote management is offered by the pre-installed Gigabyte Management Console for a single server and the Gigabyte Server Manager (GSM) for multiple servers. To regulate system temperatures there are 8x 80mm fans spinning at 16.300 rpm.

Gigabyte H262-P60 Server - Specifications

Processor - 2 Sockets (Per node)

  • Ampere Altra Max Processor
  • Ampere Altra Processor
  • Up to 128-core per processor
  • TDP up to 190W

    • Socket:

  • 2 x LGA 4926

Motherboard

  • MP62-HD0

Memory (Per node)

    Memory Slots:

  • 16 x DIMM slots
  • 8-Channel memory per processor architecture
  • 4TB of memory capacity supported per processor

    • Memory Type:

  • RDIMM
  • LRDIMM

    • Memory Speed:

  • Up to 3200 MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 256GB supported
  • LRDIMM: Up to 256GB supported

Drive Bays (Per node)

  • 6 x 2.5" SATA hot-swappable bays

LAN (Per node)

  • 2 x 1GbE LAN ports (1 x Intel I350-AM2)
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per node)

    Internal

  • 1 x M.2 slot
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x PLD header
  • 1 x Clear CMOS jumper
  • 1 x IPMB connector

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x System reset button

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN

    • Backplane Board:

  • Speed and bandwidth: SATA 6Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots (Per node)

    Riser Card CRSH01E:

  • 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

    • Riser Card CRSH01H:

  • 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

    • M.2:

  • 1 x M.2, from CPU_0
  • PCIe Gen4 x4
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 440mm

    Depth: 840mm

Power Supply

  • Dual 2200W 80 PLUS Platinum redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte H262-P60 Server - Documentation

Gigabyte H262-P60 Server Data Sheet Gigabyte H262-P60 Server User's Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User's Guide
