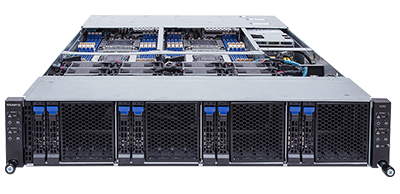

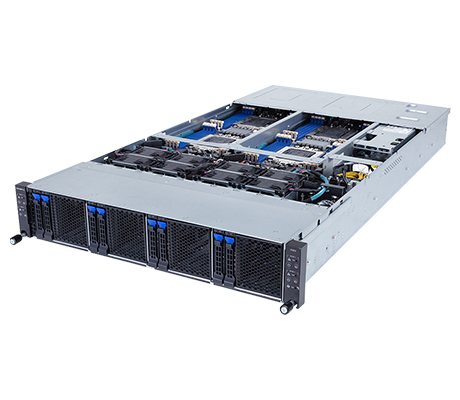

The Gigabyte H262-P61 server is a 2U, quad node system designed for high-performance computing, hyper-converged server applications, and hybrid or private cloud server deployment. Each node supports 2x Ampere Altra Max or Ampere Altra processors and 16x DIMM slots for a total of 8x CPUs and 64x DIMM slots across the system. The maximum memory capacity on this server is 32TB. Each node is connected to 2x 2.5-inch SATA hot-swappable drive bays.
Outfitted with dual Ampere Altra Max and Ampere Altra processors per compute node, the Gigabyte H262-P61 is a 4-node system ideal for high-performance computing and cloud server deployment. CPU choices are limited to those with a thermal design point (TDP) of 250W with a maximum of 128x physical cores with Ampere Altra Max CPUs. Each node houses 2x 1GbE LAN ports, one of which is an Intel I350-AM2 port. In addition, each node also has a dedicated management port. A single chassis management controller (CMC) on the rear of the server chassis provides for management of all nodes in the chassis reducing cable clutter. Node expansion is achieved via dual PCIe x16 Gen4 low-profile slots in each node.

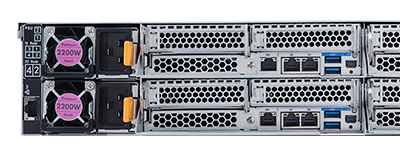

Powering this system are dual 2200W 80 PLUS Platinum power supplies in a redundant configuration, in the case of a power failure. The Gigabyte Management Console comes pre-installed on this server, which grants the ability to remotely manage the server via a web interface. 3rd party integration is simplified via the management console. To manage multiple servers, the Gigabyte Server Manger (GSM) offers many features and pairs seamlessly with the Gigabyte Management Console via the GSM Agent. System temperatures are regulated by 8x 80mm fans at 16,300rpm.
Gigabyte H262-P61 Server - Specifications
Processor - 2 Sockets (Per node)
Ampere Altra Max Processor
Ampere Altra Processor
Up to 128-core per processor
TDP up to 250W
Socket:
2 x LGA 4926
Motherboard
MP62-HD0
Memory (Per node)
Memory Slots:
16 x DIMM slots
8-Channel memory per processor architecture
4TB of memory capacity supported per processor
Memory Type:
RDIMM
LRDIMM
Memory Speed:
Up to 3200 MHz
DIMM Module Sizes:
RDIMM: Up to 256GB supported
LRDIMM: Up to 256GB supported
Drive Bays (Per node)
2 x 2.5" SATA hot-swappable bays
LAN (Per node)
2 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x Dedicated management port
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output (Per node)
Internal
1 x M.2 slot
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Rear:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN
Backplane Board:
Speed and bandwidth: SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots (Per node)
Riser Card CRSH01E:
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
