Gigabyte H262-PC0 Server

Deployed as a hybrid cloud server to host websites, databases, and file storage, the Gigabyte H262-PC0 server is a 2U, 4x node system. Under the hood, the platform holds a total of 64x DDR4 DIMMs with up to 16TB of RAM divided between the 4x nodes. The DIMM slots support RDIMMs, LRDIMMs, 3DS RDIMMs, 3DS LRDIMMs, plus Intel Optane Persistent Memory 200 series. This server is powered by dual 2200W redundant 80 PLUS Platinum power supplies and each node supports dual 3rd Generation Intel Xeon Scalable processors. These CPUs feature Intel Xeon Platinum, Gold, and Silver families with a TDP of up to 270W.
Configure

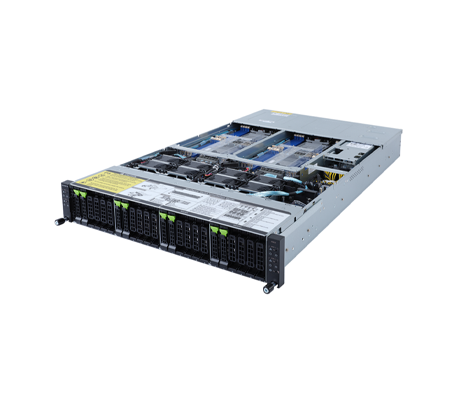

Gigabyte H262-PC0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-PC0 Server - System Overview

As for storage, the H262-PC0 server features 8x SATA, SAS, or Gen4 NVMe hot-swappable drive bays on the front panel and 4x SATA DOMs, one for each node. The machine also offers 8x 10Gb/s BASE-T LAN ports, 8x low profile PCIe Gen4 expansion slots, 4x OCP 2.0 Gen3 x16 mezzanine slots, and 4x dedicated management ports. The Chassis Management Controller (CMC) port provides global management for the system.

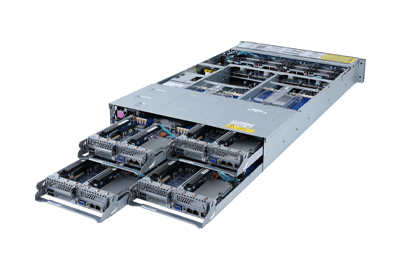

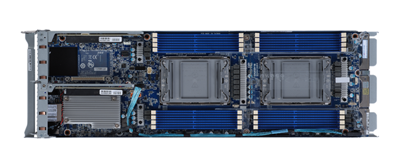

Gigabyte H262-PC0 rear Gigabyte H262-PC0 node

Available Configurations

Explore available configurations for the Gigabyte H262-PC0 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H262-PC0 Server - Specifications

Processor - 2 Sockets (Per Node)

  • 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • 10nm technology, CPU TDP up to 270W

    • Socket:

  • 2 x LGA 4189, Socket P+

    • Chipset:

  • Intel C621A Chipset

Motherboard

  • MH62-HD0

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS LRDIMM
  • 3DS RDIMM

    • Memory Speed

  • 1.2V modules: 3200/2933/2666 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 2 x SATA/SAS/Gen4 NVMe hot-swappable bays
  • 1 x SATA DOM

LAN (Per Node)

  • 2 x 10GbE BASE-T LAN ports (1 x Intel® X710-AT2)
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x COM header
  • 1 x SATA 7-pin connectors
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRSH01D:

  • 1 x Half-length low-profile slot with PCIe x16 (Gen4 x16 bus)
    • Riser Card CRSH01E:

  • 1 x Half-length low-profile slots with PCIe x16 (Gen4 x16 bus)

  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth

Chassis

    Enclosure

    Height: 87.5mm

    Width: 440mm

    Depth: 840mm

Power Supply

  • 2 x 2200W redundant 80 PLUS Platinum power supply

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
