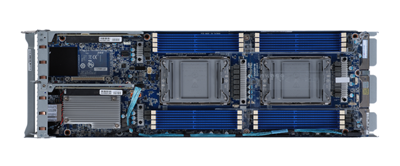

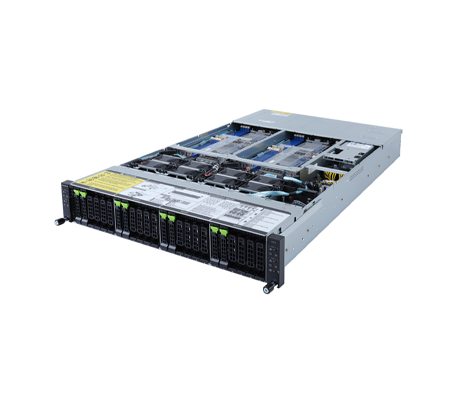

Each node on the Gigabyte H262-PC1 High-Density Server has access to 2x Gen4 U.2/SATA/SAS hot-swap drive bays for 8x total across all nodes. For expansion each node has 2x low profile PCIe Gen4 x16 slots. With a top TDP of up to 270W, that includes CPUs with up to 40 physical cores and 80 virtual threads. However, if a CPU with a TDP of 270W is installed, one of the PCIe slots should remain empty to maintain peak operational temperatures. Powering the system are dual redundant 2200W 80 PLUS power supplies.
This system is designed for Human-Computer Interaction (HCI) and used as a hybrid/private cloud server. Each node has a dedicated management port and 2x 10Gb/s LAN ports for basic network communications. There is also one Chassis Management Controller port allowing for multi-node monitoring by connecting all nodes internally via the integrated Baseboard Management Controller (BMC). This allows for less clutter from multiple cables attached to server nodes individually. Gigabyte also offers value-added management capabilities with the pre-installed Gigabyte Management Console and Gigabyte Server Management, which is available for download.
Explore available configurations for the Gigabyte H262-PC1 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- 3rd Generation Intel Xeon Scalable Processors
- Dual processor per node, 10nm technology
- CPU TDP up to 270W
- Motherboard: MH62-HD1
- Socket P+
- Chipset: Intel C621A Chipset
*Leave 1x PCIe slot empty if using processor with 270W TDP
NOTE: If only 1x CPU is installed, some PCIe or memory functions might be unavailable.
Per Node: 2x LGA 4189
Total: 8x LGA 4189
Per node: 16 x DIMM slots
Total: 64 x DIMM slots
- DDR4 memory supported only
- 8-channel memory architecture
- RDIMM modules up to 128GB supported
- LRDIMM modules up to 128GB supported
- 3DS RDIMM/LRDIMM modules up to 256GB supported
- 1.2V modules: 3200/2933/2666 MHz
Per node: 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
Total: 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
- SAS card is required for SAS devices support
Per node:
Riser Card CRSH01D: 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01E: 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
- 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth*
Total:
Riser Card CRSH01D x 4: 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
Riser Card CRSH01E x 4: 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
- 4 x OCP 2.0 mezzanine slots with PCIe Gen3 x8 bandwidth*
*NOTE: OCP 2.0 bandwidth is shared with onboard LAN. Onboard LAN would be disabled if OCP 2.0 Gen3 x16 bandwidth is needed.
Per node:
- 2 x 10GbE BASE-T LAN ports (1 x Intel X710-AT2)
- NCSI function supported
- 1 x Dedicated management port
Total:
- 8 x 10GbE BASE-T LAN ports (4 x Intel X710-AT2)
- NCSI function supported
- 4 x Dedicated management ports
- 1 x CMC port
Per Node:
- 1 x COM header
- 1 x SATA 7-pin connector
- 1 x TPM header
- 1 x VROC connector
- 1 x BMC SGPIO header
- 1 x JTAG BMC header
- 1 x PLD header
- 1 x Clear CMOS jumper
- 1 x IPMB connector
Per Node:
- 1 x Power button with LED
- 1 x ID button with LED
- 1 x Status LED
- 1 x Reset button
Total:
- 4 x Power buttons with LED
- 4 x ID buttons with LED
- 4 x Status LEDs
- 4 x Reset buttons
- *1 x CMC Status LED
- *1 x CMC Reset button
*Only one CMC Status LED and Reset button per system
Per node:
- 2 x USB 3.0
- 1 x VGA
- 2 x RJ45
- 1 x MLAN
- 1 x ID LED
Total:
- 8 x USB 3.0
- 4 x VGA
- 8 x RJ45
- 4 x MLAN
- 4 x ID LEDs
- *1 x CMC port
*Only one CMC port per system
- Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
- Aspeed AST2600 management controller
- AMI MegaRAC SP-X Solution Web interface
- Dual 2200W 80 PLUS Platinum redundant power supply

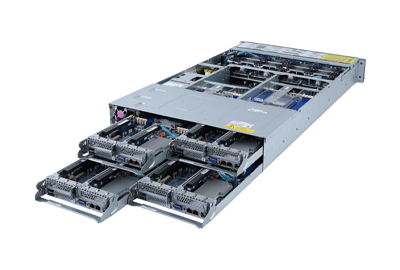

- 2U 4-Node - Rear access
- 440 x 87.5 x 840 mm
- Net Weight: 27.2 kg
