Gigabyte H262-PC2 Server

The Gigabyte H262-PC2 server is a high density, Intel-based system with 4x nodes that are accessible through the rear. Each node of the 2U platform supports 2x 3rd Generation Intel Xeon Scalable processors with up to 40 cores and a TDP of up to 270W. Under the lid, the server delivers a total of 64x memory modules with up to 16TB of memory when all slots in each of the 4x server nodes are filled with 256GB 3DS RDIMMs/LRDIMMs. Less RAM is supported with RDIMMs, LRDIMMs, or Intel Optane Persistent Memory 200 series (PMem) installed. This platform offers a total of 8x low profile PCIe Gen4 x16 expansion slots, 4x OCP 3.0 Gen4 x16 mezzanine slots, and 1x CMC global management port.
Configure

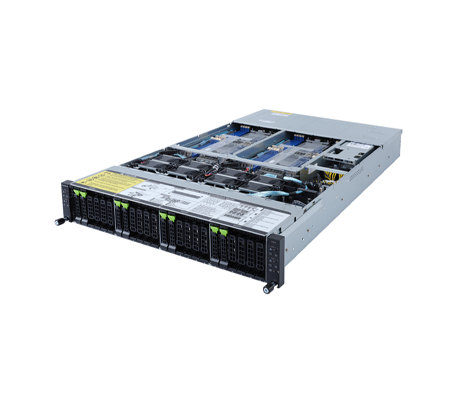

Gigabyte H262-PC2 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-PC2 Server - System Overview

The hyper-converged H262-PC2 system features 8x 2.5-inch SATA, SAS, or Gen4 NVMe hot-swappable drive bays on the front panel. Businesses will find this server useful for remote data center management, file storage, use as hybrid/private could server, hyper-converged infrastructures, and various other applications like testing and development plus edge computing.

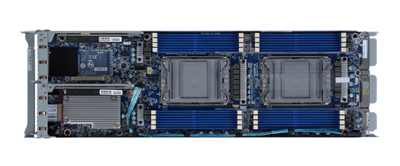

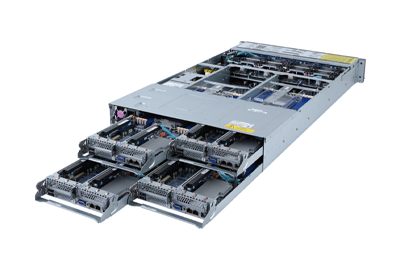

Gigabyte H262-PC2 rear Gigabyte H262-PC2 node

Available Configurations

Explore available configurations for the Gigabyte H262-PC2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H262-PC2 Server - Specifications

Processor - 2 Sockets (Per Node)

  • 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • 10nm technology, CPU TDP up to 270W

    • Socket:

  • 2 x LGA 4189, Socket P+

    • Chipset:

  • Intel C621A Chipset

Motherboard

  • MH62-HD2

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS LRDIMM
  • 3DS RDIMM

    • Memory Speed

  • 1.2V modules: 3200/2933/2666 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 2 x SATA/SAS/Gen4 NVMe hot-swappable bays

LAN (Per Node)

  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x COM header
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System status LED
  • 1 x Reset button

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRSH01H:

  • 1 x Half-length low-profile slot with PCIe x16 (Gen4 x16 bus)
    • Riser Card CRSH01E:

  • 1 x Half-length low-profile slots with PCIe x16 (Gen4 x16 bus)

  • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

Chassis

    Enclosure

    Height: 87.5mm

    Width: 440mm

    Depth: 840mm

Power Supply

  • 2 x 2200W redundant 80 PLUS Platinum power supply

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-PC2 Server - Documentation

Gigabyte H262-PC2 Server User Manual Gigabyte H262-PC2 Server Data Sheet Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
