Gigabyte H262-Z61 Server

Loaded with dual 7001/7002/7003 series AMD EPYC processors, the Gigabyte H262-Z61 server supports a total of 8x CPUs within 4x nodes. 7002 and 7003 series CPUs deliver up to 64 cores and 128 threads with a TDP of up to 200W. The 2U chassis holds 64x DIMM slots with an 8-channel memory architecture per processor. Paired with a 7002 series CPU, standard 128GB RDIMMs or LRDIMMs in all slots the server supports a maximum capacity of up to 8TB of memory. Up to 16TB can be installed using 7003-series CPUs. On the front panel, there are 24x 2.5” SAS/SATA hot-swappable drive bays which can be configured with HDD or SSD drives and are divided between the 4x nodes.
Configure

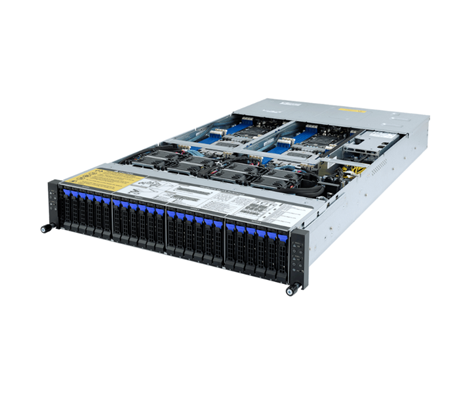

Gigabyte H262-Z61 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-Z61 Server - System Overview

On the back of each node, there is 1x dedicated management port, 1x OCP 2.0 Gen3 x16 mezzanine slot, and 2 x 1GbE LAN ports. Each of the nodes on the H262-Z61 server also include includes 2x low profile PCIe Gen4 x16 expansion slots and 2x M.2 PCIe Gen3 x4 slots for cards with interface types 2242, 2260, 2280, or 22110. Powered by dual 2200W redundant 80 PLUS Platinum PSUs, this system has the ability to rapidly engage in a variety of workloads within a range of industries.



Gigabyte H262-Z61 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family

Gigabyte H262-Z61 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

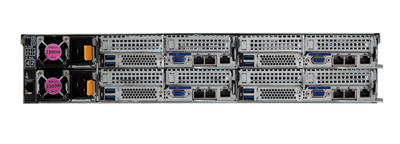

Gigabyte H262-Z61 rear Gigabyte H262-Z61 node

Gigabyte H262-Z61 Server - Specifications

Processor - 2 Sockets (Per Node)

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Dual processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 200W

    • Socket:

  • 2 x LGA 4094

    • Chipset:

  • System on Chip

Motherboard

  • MZ62-HD0

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM

    • Memory Speed

  • Up to 3200MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 6 x 2.5" SAS/SATA hot-swappable HDD/SSD bays

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 2 x M.2 Slot
  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x System Reset button

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x RJ45 MLAN

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots (Per Node)

  • 2 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus) from CPU_0
  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)

    • 2x M.2 slots from CPU_0 and CPU_1:

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 87.5mm (3.444 in)

    Width: 440mm (17.322 in)

    Depth: 840mm (33.070 in)

Power Supply

  • 2 x 2200W redundant 80 PLUS Platinum power supply

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-Z61 Server - Documentation

Gigabyte H262-Z61 Server User Manual Gigabyte H262-Z61 Server Data Sheet Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
