Designed for hybrid/private cloud computing applications, the Gigabyte H262-Z62 Server is a dense, 4x node system that houses dual 2nd or 3rd Generation AMD EPYC Series processors in each server node. Each server node also supports 16x DDR4 DIMM slots for a total of 64x DIMM slots across the whole chassis. Fully configured, the total maximum memory capacity on this server is 8TB. 6x 2.5-inch NVMe/SATA hot-swappable drive bays on the front of the chassis are assigned to each server node.

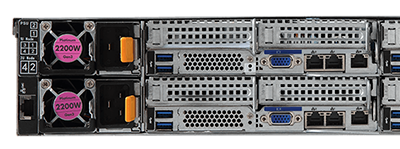

Designed for use as a hybrid /private cloud server and HCI, the Gigabyte H262-Z62 Server houses 4x compute nodes in a 2U chassis. The server nodes are limited to CPUs with a Thermal Design Point (TDP) of 200W with up to 64x physical cores and 126x virtual threads. Every node has dual 1GbE LAN ports, 1x of which is an Intel I350-AM2 port. A dedicated management LAN port is also available on each node. Accessible from the rear of each node, are 2x PCIe Gen4 x16 low-profile expansion slots plus a PCIe 3.0 x16 slot for an OCP 2.0 mezzanine card. 2x M.2 slots per node are ideal for fast access storage needs or OS installation. Powering this system are dual 2200W 80 PLUS Platinum power in a redundant configuration. Regulating interior temperature are 8x 80mm system fans.
Each node features an Aspeed AST2500 baseboard management controller (BMC) accessed by the dedicated management port for remote management of the system. The Gigabyte Management Console comes pre-installed on each server node to help manage the server through an intuitive browser-based user interface. The Gigabyte Server Manager or GSM is also available providing remote management capabilities for multiple servers that is compatible with either integrated platform management interface (IPMI) or Redfish (RESTful API) protocols. GSM Mobile for use with a smart phone or tablet is available for both Android and iOS operating systems. A chassis management controller (CMC) port accessible from the back of the chassis provides management of all nodes simultaneously.
Gigabyte H262-Z62 Server - Specifications
Processor- 2 Sockets (Per node)
AMD EPYC 7002 Series processors
AMD EPYC 7003 Series processors
Up to 64-core, 128 threads per processor
TDP up to 200W
CPU TDP is limited to 155W if using M.2 device
Socket:
2 x LGA 4094
Motherboard
MZ62-HD0
Memory (Per node)
Memory Slots:
16 x DDR4 DIMM slots
8-Channel memory architecture
Memory Type:
RDIMM
LRDIMM
Rev. A00: 3DS RDIMM/LRDIMM
Memory Speed:
Up to 3200 MHz
DIMM Module Sizes:
RDIMM: Up to 128GB supported
LRDIMM: Up to 128GB
3DS RDIMM/LRDIMM: 256GB
Drive Bays (Per node)
6 x 2.5" NVMe/SATA hot-swappable bays
LAN (Per node)
2 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x Dedicated management port
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output (Per node)
Internal
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Rear:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Backplane Board:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots (Per node)
PCIe:
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0
