Gigabyte H262-Z62 Server

Designed for hybrid/private cloud computing applications, the Gigabyte H262-Z62 Server is a dense, 4x node system that houses dual 2nd or 3rd Generation AMD EPYC Series processors in each server node. Each server node also supports 16x DDR4 DIMM slots for a total of 64x DIMM slots across the whole chassis. Fully configured, the total maximum memory capacity on this server is 8TB. 6x 2.5-inch NVMe/SATA hot-swappable drive bays on the front of the chassis are assigned to each server node.
Configure

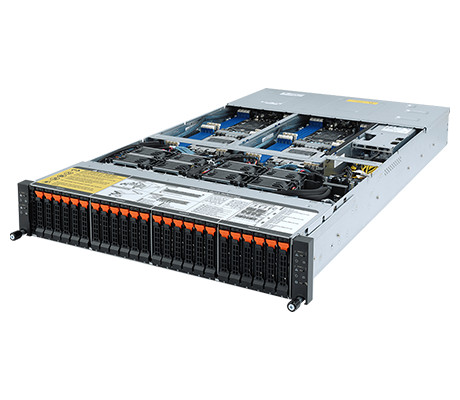

Gigabyte H262-Z62 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-Z62 Server - System Overview

Additional Information

Gigabyte H262-Z62 front detail

Designed for use as a hybrid /private cloud server and HCI, the Gigabyte H262-Z62 Server houses 4x compute nodes in a 2U chassis. The server nodes are limited to CPUs with a Thermal Design Point (TDP) of 200W with up to 64x physical cores and 126x virtual threads. Every node has dual 1GbE LAN ports, 1x of which is an Intel I350-AM2 port. A dedicated management LAN port is also available on each node. Accessible from the rear of each node, are 2x PCIe Gen4 x16 low-profile expansion slots plus a PCIe 3.0 x16 slot for an OCP 2.0 mezzanine card. 2x M.2 slots per node are ideal for fast access storage needs or OS installation. Powering this system are dual 2200W 80 PLUS Platinum power in a redundant configuration. Regulating interior temperature are 8x 80mm system fans.

Gigabyte H262-Z62 detail top

Each node features an Aspeed AST2500 baseboard management controller (BMC) accessed by the dedicated management port for remote management of the system. The Gigabyte Management Console comes pre-installed on each server node to help manage the server through an intuitive browser-based user interface. The Gigabyte Server Manager or GSM is also available providing remote management capabilities for multiple servers that is compatible with either integrated platform management interface (IPMI) or Redfish (RESTful API) protocols. GSM Mobile for use with a smart phone or tablet is available for both Android and iOS operating systems. A chassis management controller (CMC) port accessible from the back of the chassis provides management of all nodes simultaneously.

Gigabyte H262-Z62 Server - Specifications

Processor- 2 Sockets (Per node)

  • AMD EPYC 7002 Series processors
  • AMD EPYC 7003 Series processors
  • Up to 64-core, 128 threads per processor
  • TDP up to 200W
  • CPU TDP is limited to 155W if using M.2 device

    • Socket:

  • 2 x LGA 4094

Motherboard

  • MZ62-HD0

Memory (Per node)

    Memory Slots:

  • 16 x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • LRDIMM
  • Rev. A00: 3DS RDIMM/LRDIMM

    • Memory Speed:

  • Up to 3200 MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 128GB supported
  • LRDIMM: Up to 128GB
  • 3DS RDIMM/LRDIMM: 256GB

Drive Bays (Per node)

  • 6 x 2.5" NVMe/SATA hot-swappable bays

LAN (Per node)

  • 2 x 1GbE LAN ports (1 x Intel I350-AM2)
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per node)

    Internal

  • 2 x M.2 slots
  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x PLD header
  • 1 x Clear CMOS jumper
  • 1 x IPMB connector

    • Front:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x System reset button

    • Rear:

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN

    • Backplane Board:

  • PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots (Per node)

    PCIe:

  • 2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0

    • M.2:

  • 1 x M.2 (Per CPU)
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 440mm

    Depth: 840mm

Power Supply

  • 1+1 2200W 80 PLUS Platinum redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte H262-Z62 Server - Documentation

Gigabyte H262-Z62 High Density Server Data Sheet Rev. A00 Gigabyte H262-Z62 High Density Server User's Manual Rev. A00 Gigabyte H262-Z62 High Density Server Data Sheet Rev. 100 Gigabyte H262-Z62 High Density Server User's Manual Rev. 100 Gigabyte GSM Server Installation and Configuration User Guide Gigabyte GSM Agent Installation and Features Guide User's Manual
