Gigabyte H262-Z66 Server

This is a high-density platform that supports 4x nodes accessible through the rear of the platform. The Gigabyte H262-Z66 server can be outfitted with dual AMD EPYC processors from the 7001, 7002, or 7003 series families offering 8x to 64x cores in each node. Processors features a TDP of up to 200W, depending on the revision. A total of 24x drive bays on the front panel of this system, include 12x 2.5" NVMe/SATA hot-swappable SSD bays and 12x 2.5" SATA/SAS hot-swappable HDD/SSD bays split between the 4x nodes.
Configure

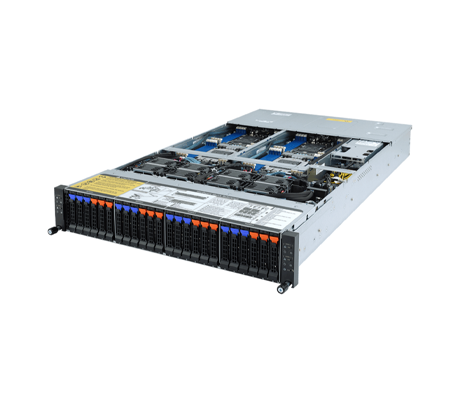

Gigabyte H262-Z66 server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-Z66 Server - System Overview

The 2U Gigabyte H262-Z66 server offers numerous helpful components for high-performance computing, hyperconverged infrastructure, and hybrid/private cloud server applications. Each H262-Z66 node can be managed individually using web interface of the GIGABYTE Management Console (AMI MegaRAC SP-X) which leverages the integrated the Aspeed AST2500 management controller. Gigabyte’s H-series servers also offer a Chassis Management Controller or CMC for multi-node management and less cable clutter. CMC also offers the ability to create a ring connection for managing and monitoring all servers in a rack.



Each node has 16x DIMM slots that can hold up to 4TB of DDR4 memory and an 8-memory channel processor architecture. In total, the system can accommodate up to 16TB of RAM and 64x DDR4 DIMM slots. For future expansion, each node also has 2x low-profile PCIe Gen4 x16 expansion slots and 1x OCP 2.0 Gen4 x16 mezzanine slot. Dual M.2 PCIe Gen3 x4 slots in each node can be outfitted with 2242, 2260, 2280, or 22110 cards. Power is provided by dual redundant 2200W PSUs. There are two revisions of this system, which vary in processors and memory types.



Gigabyte H262-Z66 Server (rev. 100)
  • AMD EPYC 7001/7002 series processor family
  • RDIMM/LRDIMM modules up to 128GB supported

Gigabyte H262-Z66 Server (rev. A00)
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

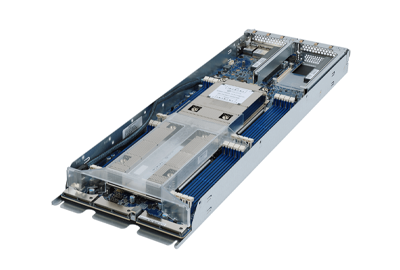

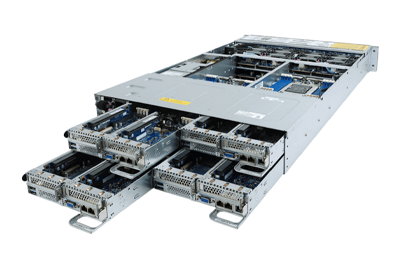

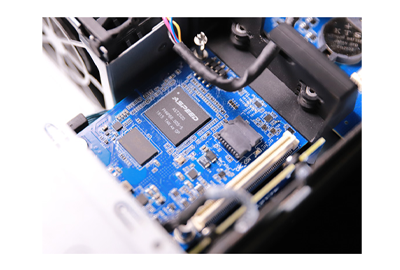

Gigabyte H262-Z66 rear Gigabyte H262-Z66 node Gigabyte H262-Z66 Aspeed

Available Configurations

Explore available configurations for the Gigabyte H262-Z66 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H262-Z66 Server - Specifications

Processor - 2 Sockets

  • (rev.100): AMD EPYC™ 7001/7002 series processor family
  • (rev.A00): AMD EPYC™ 7002/7003 series processor family
  • Dual processor, 7nm technology
  • 2 x LGA 4094
  • Up to 64-core, 128 threads per processor
  • cTDP up to 200W, cTDP 240W CPU

    • Chipset:

  • System on Chip

Motherboard

  • MZ62-HD0

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 3 x 2.5" NVMe/SATA hot-swappable SSD bays
  • 3 x 2.5" SATA/SAS hot-swappable HDD/SSD bays

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x 10/100/1000 management LAN
  • 1 x dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 2 x M.2 slots
  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System Reset Button
  • 1 x STatus LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x RJ45 MLAN

    • Backplane I/O

  • 24 x ports
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s or PCIe Gen3 x4 per port

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

  • 2 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) from CPU_0
  • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)

    • 2 x M.2 slots from CPU_0 and CPU_1:

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 87.5mm (3.44 in)

    Width: 440mm (17.32 in)

    Depth: 840mm (33.07 in)

Power Supply

  • 2 x 2200W 80 PLUS Platinum redundant PSUs

System Fans

  • 8 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-Z66 Server - Documentation

Gigabyte H262-Z66 Server Data Sheet Gigabyte H262-Z66 Server User Manual Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
