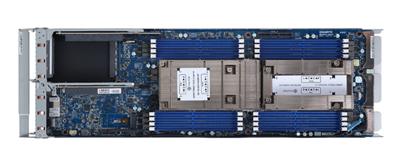

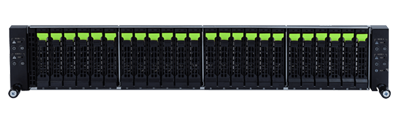

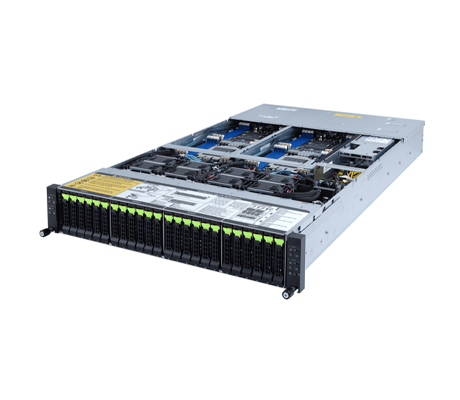

The 24-bay, 2U Gigabyte H262-Z6A server features 4x rear-accessible servers nodes. 24x 2.5-inch Gen4 NVMe U.2/SATA hot-swappable SSD drive bays, are divided between the 4x nodes. Each node has 2x sockets that are powered by an AMD EPYC 7001, 7002, or 7003 series CPU with 8 to 64 cores. Each node can support up to 4TB of memory. Certain PCIe or memory functionalities will not be available if only 1 CPU is installed.

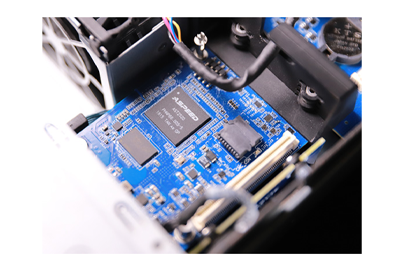

Ideal for high-performance computing and hybrid/private cloud server applications, this system can be monitored with the Gigabyte Management Console by leveraging the Aspeed AST2500 management controller. A CMC or Chassis management Controller port on the back of the system provides a unified global management option for just this single server of a full rack of servers.
As a 2U, high-density platform, the H262-Z6A server packs tons of performance under the lid. Divided equally between the nodes are 8x low-profile PCIe Gen4 x16 expansion slots and 4x M.2 slots with a PCIe Gen4 x4 interface supporting 2280 or 22110 cards. When all 16x DIMM slots are filled with 256GB memory modules, up to 4TB of DDR4 memory is offered with memory speeds of up to 3200MHz, per node. A maximum of 16TB of RAM can fit in the system's 64x DDR4 DIMM slots. System power is provided by dual 2200W 80 PLUS Platinum PSUs providing 1+1 redundancy. There are two revisions for this chassis, varying in processor families and memory support.
Gigabyte H262-Z6A Server (rev.100)
AMD EPYC 7001/7002 series processor family
RDIMM/LRDIMM modules up to 128GB supported
Gigabyte H262-Z6A Server (rev.A00)
AMD EPYC 7002/7003 series processor family
3DS RDIMM/LRDIMM modules up to 256GB supported
Gigabyte H262-Z6A Server - Specifications
Processor - 2 Sockets
(rev.100): AMD EPYC™ 7001/7002 series processor family
(rev.A00): AMD EPYC™ 7002/7003 series processor family
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 200W (Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU)
Per node: 2 x LGA 4094, Socket SP3
Motherboard: MZ62-HD4
Chipset: System on Chip
Memory (Per Node)
16x DIMM slots
DDR4 memory module supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200MHz
Storage (Per Node)
6 x 2.5" Gen4 U.2 hot-swappable SSD bays
1x M.2 slot from CPU 0:
M-Key
PCIe Gen4 x4
Supports NGFF-2280/22110 cards
Expansion Slots (Per Node)
2 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus) from CPU_0
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
Input/Output (Per Node)
Internal I/O
1 x M.2 slots
1 x COM headers
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O
1 x Power Button with LED
1 x Status LED
1 x ID button with LED
1 x System Reset Button
Rear I/O
2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN
1 x ID LED
Backplane I/O
24x ports
Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
