Gigabyte H262-Z6B Server

Supporting 4x nodes, this system offers 2x 2.5-inch Gen4 NVMe U.2 SSD bays on each node. Depending on the revision, the Gigabyte H262-Z6B server nodes support dual AMD EPYC 7001, 7002, or 7003 series CPUs. These processors support 8 to 64 cores each with a TDP of up to 225W and cTDP of up to 240W. The 2U, all-NVMe system uses dual 2200W redundant 80 PLUS Platinum PSUs and single phase immersion cooling on revisions ICU1 and ICP1 .
Configure

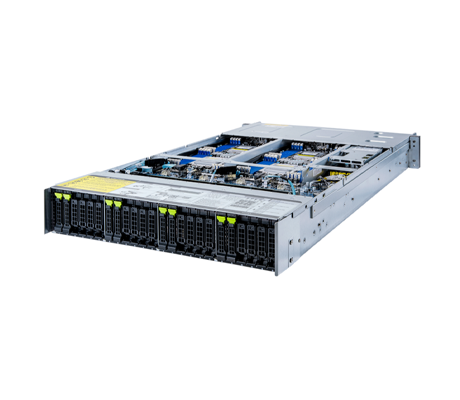

Gigabyte H262-Z6B server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-Z6B Server - System Overview

The drive cages support a tool-less, clipping mechanism that secures the drive and allows administrators to install or replace a new drive in seconds. The H262-Z6B server is suitable for high-performance computing, hybrid/private cloud server applications, and more. Management of the system is flexible with either Gigabyte’s Chassis Management Controler for global management of the system, leveraging the ASPEED AST 2500 module. Gigabyte’s Management Console and Gigabyte Server Management (GSM) provide additional options for single and multi-server applications.



Each of the 4x server nodes can be outfitted with up to 4TB of DDR4 memory operating at memory speeds of up to 3200MHz when all 16x DIMM slots are loaded with 256GB memory modules. The system's 64x DDR4 DIMM slots can accommodate up to 16TB of memory across all 4x nodes. In total, the H262-Z6B delivers 8x low-profile PCIe Gen4 x16 expansion slots and 4x M.2 slots with a PCIe Gen4 x4 interface distributed across the 4x nodes. Four different variations are avilable on this platform, which vary in CPU family, memory type, power supply, USB generation ports and optional immersion cooling.



Gigabyte H262-Z6B Server (rev.100)
  • AMD EPYC 7001/7002 series processor family
  • RDIMM/LRDIMM modules up to 128GB supported
  • 2x USB 3.0
  • 2x 2200W redundant PSUs 80 PLUS Platinum

Gigabyte H262-Z6B Server (rev.A00)
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • 2x USB 3.0
  • 2x 2200W redundant PSUs 80 PLUS Platinum

Gigabyte H262-Z6B Server (rev.ICU1)
  • Single-Phase Immersion Ready Server
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • 2x USB 3.2 Gen1
  • 2x 2200W redundant PSUs 80 PLUS Platinum

Gigabyte H262-Z6B Server (rev.ICP1)
  • Single-Phase Immersion Ready Server
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • 2x USB 3.2 Gen1
  • 2x 3000W 80 PLUS Titanium power supply
Gigabyte H262-Z6B server front view Gigabyte H262-Z6B server node Gigabyte H262-Z6B server Aspeed

Gigabyte H262-Z6B Server - Specifications

Processor - 2 Sockets

  • (rev.100): AMD EPYC™ 7001/7002 series processor family
  • (rev.A00): AMD EPYC™ 7002/7003 series processor family
  • (rev.ICU1): AMD EPYC™ 7002/7003 series processor family
  • (rev.ICP1): AMD EPYC™ 7002/7003 series processor family
  • Dual processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 280W
  • Per node: 2 x LGA 4094, Socket SP3
  • Motherboard: MZ62-HD4
  • Chipset: System on Chip

Memory (Per Node)

  • 16x DIMM slots
  • DDR4 memory module supported only
  • 8-channel memory architecture
  • RDIMM modules up to 128GB supported
  • LRDIMM modules up to 128GB supported
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • Memory speed: Up to 3200MHz

Storage (Per Node)

  • 2 x 2.5" Gen4 NVMe/SATA hot-swappable bays, from CPU_1

Expansion Slots (Per Node)

    Riser Card CRSH01E:

  • 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

    • Riser Card CRSH01H:

  • 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

  • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0

    • 1 x M.2 slot:

  • PCIe Gen4 x4, from CPU 0
  • M-key; supports 2280/22110 cards

Input/Output (Per Node)

    Internal I/O

  • 1 x M.2 slots
  • 1 x COM headers
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x PLD header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper

    • Front I/O

  • 1 x Power Button with LED
  • 1 x Status LED
  • 1 x ID button with LED
  • 1 x System Reset Button

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • Backplane I/O

  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x Dedicated management port

System Fans

  • N/A

Power Supply

  • 2 x 3000W PSUs 80 PLUS Titanium
  • Power Supply: 25EP0-23000E-G1S
  • Power Supply: 25EP0-222003-D0S

Chassis

    Enclosure
    Height: 3.44" (87.5mm)
    Width: 17.32" (440mm)
    Depth: 33.07" (840mm)
