Gigabyte H262-ZL0 Server

Supporting 4x nodes accessible through the rear of the platform, the 2U Gigabyte H262-ZL0 server supports dual AMD EPYC processors in each node. The integrated liquid cooling solution offers a cool liquid inlet and a warm liquid outlet on the back of each node to deliver maximum performance. 7002 or 7003 series families with 8x to 64 cores per processor, and a cTDP of up to 280W can be installed. This all-NVMe system assigns 6x 2.5” Gen4 NVMe U.2 hot-swappable SSD drive bays to each node, for a total of 24x drive bays on the front panel. There is one M.2 PCIe Gen4 x4 slot in each node supporting 2280 or 22110 cards.
Configure

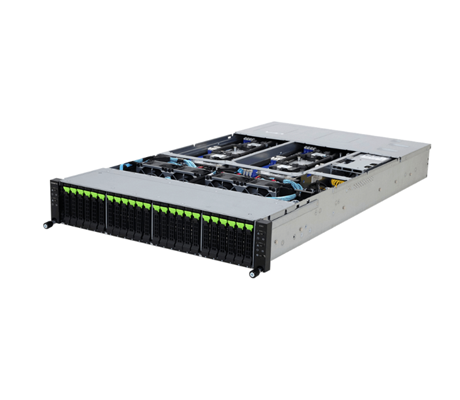

Gigabyte H262-ZL0 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-ZL0 Server - System Overview

Ideal for high-performance computing, hyperconverged infrastructure, and hybrid/private cloud server applications, the system also has a chassis management controller (CMC) global management port. The H262-ZL0 nodes can be also be managed separately with the Aspeed AST2500 management controller or the GIGABYTE Management Console (AMI MegaRAC SP-X) web interface. Under the hood, each node accommodates an 8-channel memory per processor architecture and 16x DIMM slots with up to 4TB of DDR4 memory. In total, the system supports 64x DDR4 DIMM slots and up to 16TB of RAM. Additionally, there is 1x low-profile PCIe Gen4 x16 expansion slots and 1x OCP 3.0 Gen4 x16 mezzanine slots for expansion in each node. All components are powered by a dual 2200W (240V) 80 PLUS Platinum power supply. All storage bays are also compatible with SATA storage devices.

Gigabyte H262-ZL0 node Gigabyte H262-ZL0 rear

Gigabyte H262-ZL0 Server - Specifications

Processor - 2 Sockets (Per Node)

  • 2x CPUs per node, 8x CPUs total
  • AMD EPYC 7002 or 7003 series processor family
  • Dual processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • cTDP up to 280W
  • Socket: LGA 4094
  • Liquid cooling kit: 25ST7-200002-C4R (CPU kit) optional

    • Chipset:

  • System on Chip

Motherboard

  • MZ62-HD4 Rev. 3.0

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200 MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 6 x 2.5" Gen4 U.2 hot-swappable SSD bays

    • 1 x M.2 slot from CPU_0:

  • M-Key
  • PCIe Gen4 x4
  • Supports NGFF-2280/22110 cards

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • NCSI function supported
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 1 x M.2 slots
  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System Reset Button
  • 1 x STatus LED

    • Rear

  • 2 x USB 3.0
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • Backplane I/O

  • 24 x ports
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s or PCIe Gen4 x4 per port

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots (Per Node)

  • 1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) from CPU_0

    • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

Chassis

    Enclosure

    Height: 87.5mm (3.44 in)

    Width: 440mm (17.32 in)

    Depth: 840mm (33.07 in)

Power Supply

  • 2 x 2200W 80 PLUS Platinum redundant PSUs

System Fans

  • 4 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-ZL0 Server - Documentation

Gigabyte H262-ZL0 Server Data Sheet Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide Gigabyte Liquid Cooling Module User Guide
