Gigabyte H262-ZL2 Server

The Gigabyte H262-ZL2 is a liquid-cooled server with 4x nodes. The 2U, all-flash system holds 24x 2.5” Gen4 U.2 hot-swappable NVMe SSD bays on the front. All storage bays are also compatible with SATA devices. A liquid clooling module installs on each CPU and supports a cool liquid inlet and a warm liquid outlet. Dual sockets on each node are powered by 7002 or 7003 series AMD EPYC processors with 8 to 64 cores each. These 7nm CPUs feature a cTDP of up to 280W. Some PCIe or memory functions will be unavailable if only 1 CPU is installed.
Configure

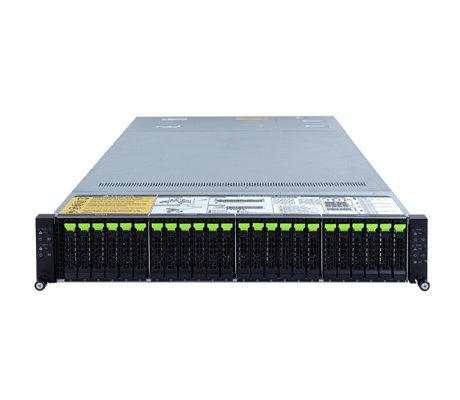

Gigabyte H262-ZL2 server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H262-ZL2 Server - System Overview

Providing several useful attributes for data centers and cloud computing, the 2U Gigabyte H262-ZL2 server is designed for high-performance computing, hyperconverged infrastructure, and hybrid/private cloud server applications. To manage the system, users can choose from either the Aspeed AST2500 management controller or GIGABYTE Management Console (AMI MegaRAC SP-X). A Single Chassis Management Controller (CMC) port on the back of the chassis provides global management of all nodes and can easily manage a full rack of servers, delivering cost and maintenance efficiencies. A single low-profile PCIe Gen4 x16 expansion slot and OCP 3.0 mezzanine slot in each node provide options for expansion. Each node has 8x memory channels per processor and 16x DIMM slots that deliver up to 4TB of DDR4 memory when all slots are populated with 256GB memory modules. The system has 64x DDR4 DIMM slots and a total DDR4 memory capacity of up to 16TB. This chassis does not support M.2 slots.

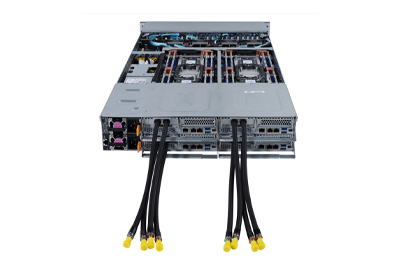

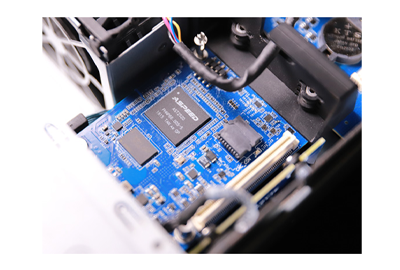

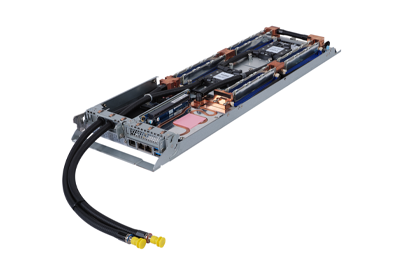

Gigabyte H262-ZL2 node Gigabyte H262-ZL2 rear Gigabyte H262-ZL2 Aspeed

Gigabyte H262-ZL2 Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 7002 or 7003 series processor family
  • Dual processor, 7nm technology
  • 2 x LGA 4094, Socket SP3
  • Up to 64-core, 128 threads per processor
  • cTDP up to 280W

    • Chipset:

  • System on Chip

Motherboard

  • MZ62-HD4 Rev. 3.0

Memory (Per Node)

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200 MHz

    • DIMM Module Sizes

  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays (Per Node)

  • 6 x 2.5" Gen4 U.2 hot-swappable SSD bays

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x 10/100/1000 management LAN
  • 1 x dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output (Per Node)

    Internal

  • 1 x COM header
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x PLD header

    • Front

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x System Reset Button
  • 1 x STatus LED

    • Rear

  • 2 x USB 3.0
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN
  • 1 x ID LED

    • Backplane I/O

  • 24 x ports
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s or PCIe Gen4 x4 per port

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

  • 1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) from CPU_0

    • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

Chassis

    Enclosure

    Height: 87.5mm (3.44 in)

    Width: 440mm (17.32 in)

    Depth: 840mm (33.07 in)

Power Supply

  • 2 x 2200W 80 PLUS Platinum redundant PSUs

System Fans

  • 4 x 80x80x38mm (16,300rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte H262-ZL2 Server - Documentation

Gigabyte H262-ZL2 Server Data Sheet Gigabyte H262-ZL2 Server Coolant User Guide Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide
