Gigabyte H273-Z80 Server

The Gigabyte H273-Z80 Server is a high-density platform featuring 4x server nodes in a 2U chassis. It has 24x 2.5-inch Gen4 NVMe or SATA hot swappable bays up front. Each of the 4x server nodes feature dual AMD EPYC 9004 or 9005 series CPUs with up to 192 physical cores, 24x DDR5 DIMM slots capable of supporting up to 6TB of memory, access to 6x 2.5" of the up-front drive bays, and 1x NVMe M.2 slot. Two integrated LAN ports via Intel I350-AM2 on each node provide network connections, with an option to install an OCP 3.0 card in a PCIe 5.0 x16 mezzanine slot.
Configure

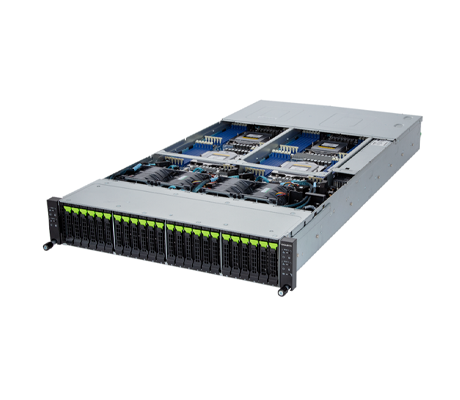

Gigabyte H273-Z80 Server side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H273-Z80 Server - System Overview

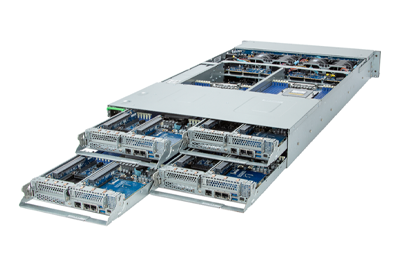

Gigabyte H273-Z80 server rear

This platform is a high-density server designed for Hyper-Converged Infrastructures (HCI), Edge Applications, Virtual Desktop Infrastructure (VDI), file storage, and for use as a Hybrid/Private Cloud server. There are two revisions, the Rev. AAN1 and Rev. AAW1.

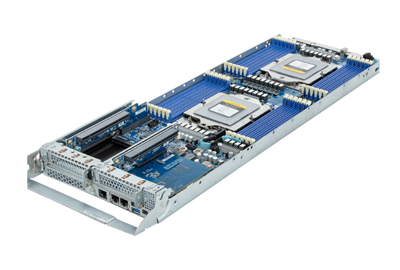

Gigabyte H273-Z80 server node
  • Gigabyte H273-Z80 (rev. AAN1): Supports dual 2600W redundant PSUs
  • Gigabyte H273-Z80 (rev. AAW1): Supports dual 3000W redundant PSUs

Gigabyte H273-Z80 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC 9005 series processor family
  • AMD EPYC 9004 series processor family
  • Dual processor, 4nm technology
  • Up to 192 cores, 384 threads per processor
  • Supports CPU 240W at ambient 30°C

Memory

  • 96x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Per Node:

  • 6 x 2.5" Gen4 NVMe / SATA / SAS hot-swappable bays

    • Total:

  • 24 x 2.5" Gen4 NVMe / SATA / SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

  • Gigabyte H273-Z80 (rev. AAN1): Supports dual 2600W redundant PSUs
  • Gigabyte H273-Z80 (rev. AAW1): Supports dual 3000W redundant PSUs

Fans

  • 4 x 80x80x80mm (16,500rpm)

I/O

    Internal I/O

    Per Node:

  • 1 x TPM Header

    • Front I/O

    Per Node:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x System reset button

    • Rear I/O

    Per Node:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN
  • 1 x Node Status LED

    • Backplane I/O

  • Backplane P/N: 9CBPH7O1NR-00
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Per Node

  • 2 x Low profile half-length slots with PCIe x16 (Gen5 x16 bus), from CPU_0
  • 1 x OCP 3.0 mezzanine slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • Supported NCSI function

    • 1 x M.2 slot from CPU_0:
  • M-key
  • PCIe Gen4 x4
  • Supports NGFF-2280/22110 cards

    • *Optional kit for M.2 extension riser card PN: 9CMTP192NR-00

Dimensions

    Height: 87.5mm (3.44")
    Width: 440mm (17.32")
    Depth: 877mm (34.52")

Gigabyte H273-Z80 Server - Documentation

Gigabyte H273-Z80 Server User Manual Gigabyte H273-Z80 OS Compatibility List Gigabyte H273-Z80 Qualified Vender List Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Agent Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Easy BIOS Refresh User Guide
