Gigabyte H273-Z82 Server

The Gigabyte H273-Z82 Server is a 2U high-density platform with 4x individual, dual-socket server nodes supporting AMD EPYC 9004 series processors. Each of the server nodes can support up to 6TB of DDR5 3DS Registered DIMMs (RDIMM) or up to 3TB using standard RDIMMs. There are 8x NVMe, SATA, SAS hot-swappable storage bays on the front, with each server node assigned 2x of the drive bays. All nodes feature 1x M.2 Gen4 interface using an optional extension riser card, plus 1x PCIe gen5 x 16 expansion slot, and 1x OCP 3.0 Gen5 x16 mezzanine card slot.
Configure

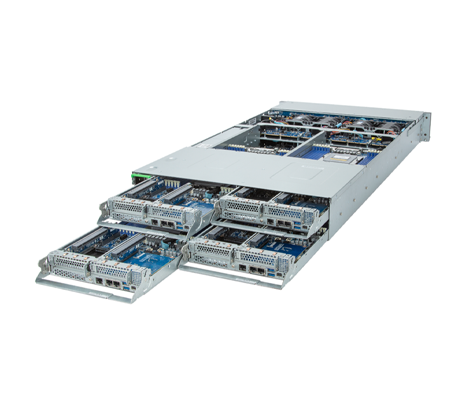

Gigabyte H273-Z82 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H273-Z82 Server - System Overview

There are two revisions to the Gigabyte H273-Z82 Server, rev. AAN1 and rev. AAW1. Both are designed to support hyperconverged infrastructures and for use as a hybrid/private cloud server. Management is via the integrated management port or via the Chassis Management Controller. The only difference between the two revisions is the power supply units supported.



Gigabyte H273-Z82 Server (rev. AAN1)
  • Dual 2600W (240V) 80 PLUS Titanium redundant power supply

Gigabyte H273-Z82 Server (rev. AAW1)
  • Dual 3000W (240V) 80 PLUS Titanium redundant power supply

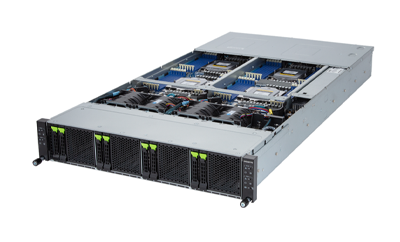

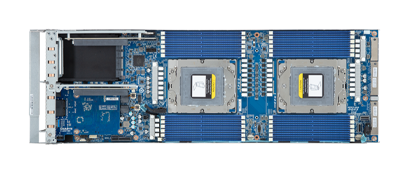

Gigabyte H273-Z82 server front Gigabyte H273-Z82 server node

Available Configurations

Explore available configurations for the Gigabyte H273-Z82 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte H273-Z82 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processor, 5nm technology
  • Up to 96-core, 192 threads per processor
  • Supports CPU 400W at ambient 25°C
  • Supports CPU 400W at ambient 20°C if using OCP 3.0

    • Per Node:
  • 2x LGA 6096, Socket SP5
  • System on Chip

Memory

    Total:
  • 96x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Total:
  • 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

  • Rev. AAN1: Dual 2600W (240V) 80 PLUS Titanium redundant power supply
  • Rev. AAW1: Dual 3000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x80mm (16,500rpm)

I/O

    Internal I/O

    Per node:

  • 1 x TPM Header

    • Front I/O

    Per Node:

  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Status LED
  • 1 x System reset button

    • Rear I/O

    Per Node:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN
  • 1 x Node Status LED

    • Backplane I/O

  • Backplane P/N: 9CBPH081NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Per Node:
  • 1 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
  • 1 x OCP 3.0 mezzanine slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • Supported NCSI function

    • 1 x M.2 slot from CPU_0 via Optional kit for M.2 extension riser card PN: 9CMTP192NR-00

  • M-Key
  • PCIe Gen4 x4
  • Supports NGFF-2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 440mm (17.32")
    Depth: 877mm (34.52")

Gigabyte H273-Z82 Server - Documentation

Gigabyte H273-Z82 Server User Manual Gigabyte H273-Z82 Server Qualified Vender List Gigabyte H273-Z82 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide (Rev. AAN1) Data Sheet (Rev. AAW1) Data Sheet
