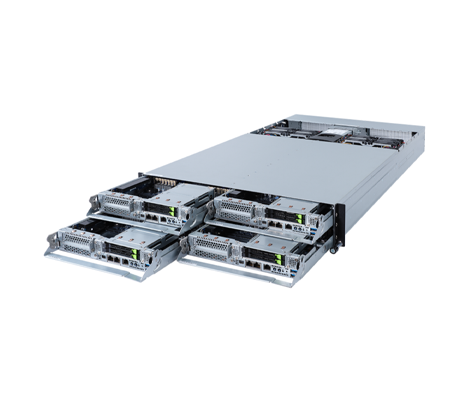

Gigabyte H282-ZC0 Server

Eight AMD EPYC processors from the 7002 or 7003 series families with 8x to 64x cores each power the 4-node Gigabyte H282-ZC0 server. The versatile system supports up to 8TB of memory per node when all 32x DDR4 DIMM slots are populated with 256GB memory modules, for a total of 96TB. The 2U platform can support a total of 8x 2.5" 7mm slim type Gen4 NVMe/SATA hot-swappable HDD/SSD drive bays, plus 8x M.2 PCIe drives using the Gen4 x4 slots with 2x slots in each node.

Overview

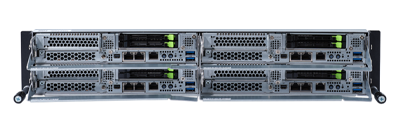

Gigabyte H282-ZC0 Server - System Overview

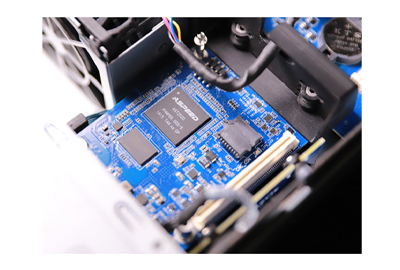

The high-density H282-ZC0 server is a front-access system that can be used for hyperconverged infrastructure, virtualization, and more. The dual 3200W (240V) 80 PLUS Platinum redundant PSU powers the components including 12x PCIe Gen4 x16 expansion slots. Each node has a single low-profile, half-length x16 slot on the front and two full-height, half-length x16 expansion slots in the rear. 4x OCP 3.0 Gen4 x16 mezzanine slots are accessible from the front of each node providing additional options for network connectivity. In addition, there are 2x CMC global management ports, and each node has a dedicated management port. This system is managed by the Aspeed AST2500 management controller or the GIGABYTE Management Console (AMI MegaRAC SP-X) web interface.

Specifications

Gigabyte H282-ZC0 Server - Specifications

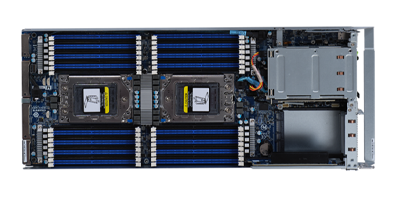

Processor - 2 Sockets (Per Node)

AMD EPYC™ 7002/7003 series processor family
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
CPU 200W, fully support, ambient 35°C
CPU 240W, conditional support, ambient 35°C, PCIe card only x1pcs per Node
CPU 280W, conditional support, ambient 25°C, PCIe card only x1pcs per Node
Socket SP3
Motherboard: MZC2-LM0
Chipset: System on Chip

Memory (Per Node)

32x DIMM slots
DDR4 memory module supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/2933 MHz

Storage (Per Node)

2 x 2.5" 7mm slim type NVMe/SATA hot-swappable HDD/SSD bays

Expansion Slots (Per Node)

1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) on front side (CPU_0)
2 x Full height half-length slots with PCIe x16 (Gen4 x16 bus) on rear side (CPU_1)

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0

2 x M.2 slots from CPU_0 and CPU_1:

PCIe Gen3 x4
M-key; supports 2260/2280 cards
CPU TDP is limited to 240W if using M.2 device

Input/Output (Per Node)

2 x M.2 slots
1 x COM headers
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x IPMB connector
1 x Clear CMOS jumper

Front I/O

2 x USB 3.0
1 x Power Button with LED
1 x Status LED
1 x ID button with LED
1 x System Reset Button
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN

Rear I/O

2 x CMC global management ports

1 x Global OCP 3.0 slot
Dedicated support for optional NVIDIA MCX565M-CDAB multi-host adapter from system BOM version A02

Backplane I/O

2 x ports per node
Speed and bandwidth: SATA 6Gb/s or PCIe Gen4 x4 per port

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

LAN (Per Node)

2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port

Audio

System Fans

8 x 80x80x38mm (16,300rpm)

Power Supply

2 x 3200W PSUs 80 PLUS Platinum

Chassis

Documentation

Gigabyte H282-ZC0 Server - Documentation

Gigabyte H282-ZC0 Server Data Sheet Gigabyte H282-ZC0 Server User Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Server Installation and Features Guide Gigabyte Server Management Console User Guide
