Gigabyte H282-ZC1 Server

The high-density, 2U Gigabyte H282-ZC1 server has 4x nodes, each of which is powered by dual AMD EPYC processors from the 7002 or 7003 series with 8 to 64 cores. Each of the front accessible server nodes is capable of supporting 32x DDR4 DIMM slots for up to 8TB of memory per node, for a total of 32TB across all 4x server nodes. In addition to 2x M.2 PCIe Gen4 x4 slots with compatibility for 2260 or 2280 cards, each node has 2x 2.5" 7mm slim type Gen4 NVMe/SATA hot-swappable HDD/SSD drive bays on the front panel.
Configure

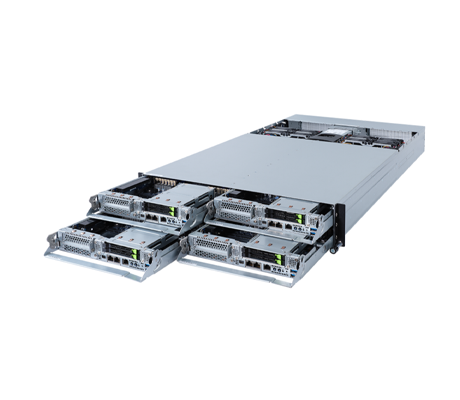

Gigabyte H282-ZC1 server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte H282-ZC1 Server - System Overview

Hyperconverged infrastructure, virtualization, and other applications are all possible with the H282-ZC0 server. A single low-profile PCIe Gen4 x16 expansion slot and OCP 3.0 Gen4 x16 mezzanine slot on each node, are just some of the components that are powered by the dual 3200W (240V) 80 PLUS Platinum redundant PSUs. Every node has a dedicated management port for individual server node management. Two CMC global management ports provide one too many server management of the platform and can be daisy-chained with other servers in the network. This system can be managed by several options, the Chassis Management Controller, GIGABYTE Management Console, or the Gigabyte Server Manager, all leveraging the Aspeed AST2500 management controller in each server node.

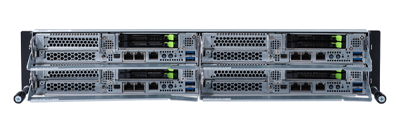

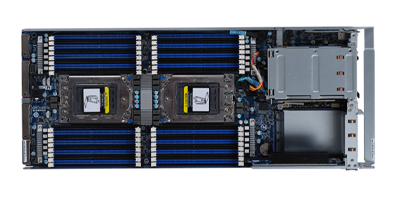

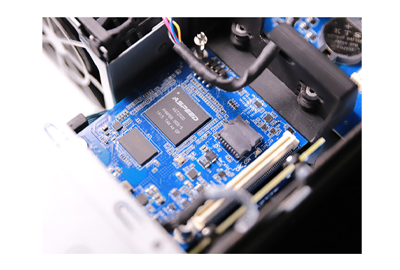

Gigabyte H282-ZC1 server front view Gigabyte H282-ZC1 server node Gigabyte H282-ZC1 server Aspeed

Gigabyte H282-ZC1 Server - Specifications

Processor - 2 Sockets (Per Node)

  • 2x CPUs per node, 8x CPUs total
  • AMD EPYC™ 7002/7003 series processor family
  • Dual processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • CPU 200W, fully support, ambient 35°C
  • CPU 240W, conditional support, ambient 35°C, PCIe card only x1pcs per Node
  • CPU 280W, conditional support, ambient 25°C, PCIe card only x1pcs per Node
  • Socket SP3
  • Motherboard: MZC2-LM0
  • Chipset: System on Chip

Memory (Per Node)

  • 32x DIMM slots per node, 128x DIMM slots total
  • DDR4 memory module supported only
  • 8-channel memory architecture
  • RDIMM modules up to 128GB supported
  • LRDIMM modules up to 128GB supported
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • Memory speed: Up to 3200/2933 MHz

Storage (Per Node)

  • 2 x 2.5" 7mm slim type NVMe/SATA hot-swappable HDD/SSD bays

Expansion Slots (Per Node)

  • 1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) on front side (CPU_0)

  • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0

    • 2 x M.2 slots from CPU_0 and CPU_1:

  • PCIe Gen3 x4
  • M-key; supports 2260/2280 cards
  • CPU TDP is limited to 240W if using M.2 device

Input/Output (Per Node)

    Internal I/O

  • 2 x M.2 slots
  • 1 x COM headers
  • 1 x TPM header
  • 1 x BMC SGPIO header
  • 1 x JTAG BMC header
  • 1 x PLD header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper

    • Front I/O

  • 2 x USB 3.0
  • 1 x Power Button with LED
  • 1 x Status LED
  • 1 x ID button with LED
  • 1 x System Reset Button
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x RJ45 MLAN

    • Rear I/O

  • 2 x CMC global management ports

    • Backplane I/O

  • 2 x ports per node
  • Speed and bandwidth: SATA 6Gb/s or PCIe Gen4 x4 per port

    • TPM

  • 1 x TPM header with LPC interface
  • Optional TPM2.0 kit: CTM000

LAN (Per Node)

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x Dedicated management port

Audio

  • N/A

System Fans

  • 8 x 80x80x38mm (16,300rpm)

Power Supply

  • 2 x 3200W PSUs 80 PLUS Platinum

Chassis

    Enclosure
    Height: 3.44" (87.5mm)
    Width: 17.59" (447mm)
    Depth: 35.51" (902mm)
