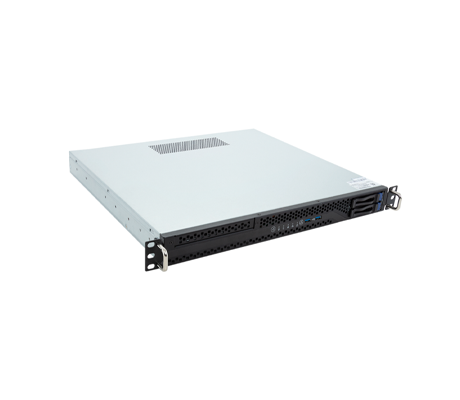

Gigabyte R113-C10 Server

The 4-bay Gigabyte R113-C10 Server is designed for networking applications such as file storage, file access via VPN, and more. A single AMD EPYC 4004 or AMD Ryzen 7000 series processor with a TDP of up to 105W can be loaded into the short-depth chassis, but overclocking is not available because of thermal limitations. Depending on the model revision, this system is powered by a single 400W Gold or 350W Bronze power supply.

Overview

Gigabyte R113-C10 Server - System Overview

A total of 4x drive bays are available on the R113-C10 Server. There are 2x 2.5-inch SATA hot-swap drive bays on the front of the chassis and an additional 2x 2.5-inch SATA internal drive bays. If more storage is needed, or to boot the operating system, users can deploy 1x M.2 slot with a PCIe Gen5 x4 interface for 2242 and 2280 cards. The platform offers a riser card for 1x PCIe Gen5 x16 FHHL slot. Up to 128GB of memory can be deployed by way of 4x DIMM slots, which can be loaded with DDR5 ECC or non-ECC UDIMMs.

Gigabyte offers 2x free managing tools: the pre-installed Gigabyte Management Console and the Gigabyte Server Manager, available for download. The Gigabyte Management Console controls one server, but the Gigabyte Server Manager can manage multiple servers or large clusters of servers.

Gigabyte R113-C10 Server (AA01)

Single 350W 80 Plus Bronze power supply

Gigabyte R113-C10 Server (AA02)

Single 400W 80 Plus Gold power supply

Specifications

Gigabyte R113-C10 Server - Specifications

Processor- 1 Socket

AMD EPYC 4004 Series Processors
AMD Ryzen 7000 Series Processors
Dual processor, 5nm technology
Socket: 1x AM5
Chipset: AMD B650E
TDP up to 105W

Motherboard

MC13-LE0

Memory

4x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture

Memory Speed

AMD Ryzen 9000:

UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)

UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

DIMM Module Sizes

DIMM up to 32GB supported
ECC UDIMM 1Rx8/2Rx8 supported
Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported

Drive Bays

Front Side:

2 x 2.5" SATA hot-swappable bays

Internal:

2 x 2.5" SATA bays

LAN

2 x 1Gb/s LAN ports (2 x Intel I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp

Input / Output

1 x TPM header

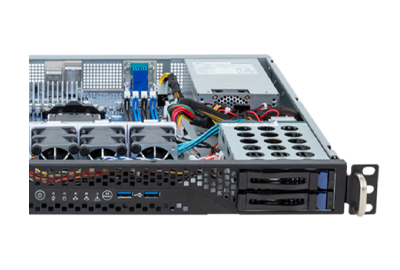

Front

2 x USB 3.2 Gen1
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

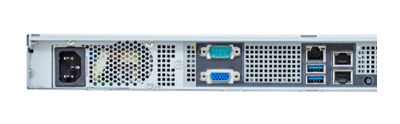

Rear

2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

M-key
PCIe Gen5 x4, from CPU
Supports 2242/2280 cards

Chassis

Height: 43.5 mm

Width: 430 mm

Depth: 393.2 mm

Power Supply

Single 400W 80 Plus Gold power supply

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte R113-C10 Server - Documentation

Gigabyte R113-C10 Server User Manual Gigabyte R113-C10 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
