Gigabyte R123-C00 Server

Powered by 1x AMD EPYC 4004 or AMD Ryzen 7000 series processor, the Gigabyte R123-C00 Server supports file storage, file access via a VPN, and more. A thermal design point (TDP) of up to 105W is supported, but overclocking is not permitted due to thermal limitations. The 4-bay system offers 3.5” or 2.5” hot-swappable SATA drive bay configurations on the front of the chassis. A total of 128GB of memory is supported among 4x DIMM slots, which are compatible with ECC UDIMM and non-ECC UDIMMs. In a 1 DPC configuration, the system can achieve memory speeds of up to 5200 MT/s.
Configure

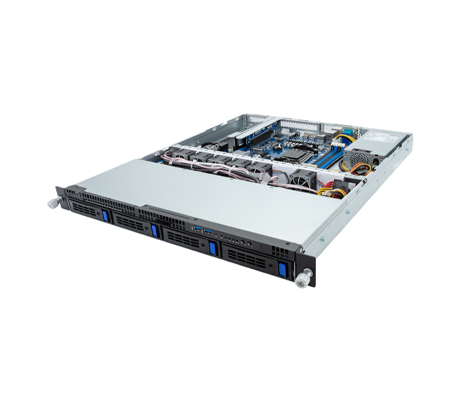

Gigabyte R123-C00 Server side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R123-C00 Server - System Overview

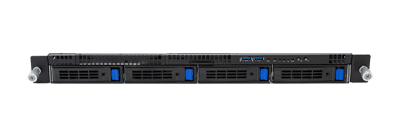

Gigabyte R123-C00 server front

The R123-C00 Server has a total of 3x PCIe slots by way of two different riser cards that are accessible through the rear of the chassis. There is 1x PCIe Gen5 x16 FHHL slot on one card and 2x PCIe Gen4 x4 low-profile slots on another. A PCIe 4.0 x4 slot on the system board supports an NVMe M.2 drive that can be used to boot the system. Also, on the rear of the server there is a single 400W 80 PLUS Gold power supply. However, if installing a 75W GPU a 500W PSU is recommended.

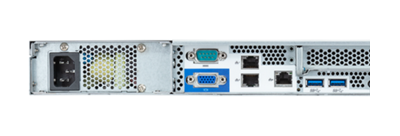

Gigabyte R123-C00 server rear

Gigabyte offers two complimentary software tools for platform management. The pre-installed Gigabyte Management Console can manage individual servers, while the Gigabyte Server Manager enables administrators to monitor and control multiple servers. In case of any issues, administrators can check the system’s health status via a browser-based interface.

Available Configurations

Explore available configurations for the Gigabyte R123-C00 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R123-C00 Server - Specifications

Processor- 1 Socket

  • AMD EPYC 4004 Series Processors
  • AMD Ryzen 7000 Series Processors
  • Single processor, 5nm technology
  • Socket: 1x AM5
  • Chipset: AMD B650E
  • TDP up to 105W

  • *Overclocking not supported due to thermal limitation.

Motherboard

  • MC03-CE0

Memory

  • Memory Slots

  • 4x DIMM slots
  • DDR5 memory supported only
  • Dual Channel memory architecture

Memory Speed

AMD Ryzen 9000:

  • UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)

  • AMD EPYC 4004 / Ryzen 7000:
  • UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

DIMM Module Sizes

  • DIMM up to 32GB supported
  • ECC UDIMM 1Rx8/2Rx8 supported
  • Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported

Drive Bays

Front Side:

  • 4 x 3.5"/2.5" SATA hot-swappable bays

LAN

  • Rear Side:
  • 2 x 1Gb/s LAN ports (2 x Broadcom BCM5720)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

  • Internal

  • 1 x TPM header

Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED

Rear

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x COM
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

Backplane

  • Speed and bandwidth: SATA 6Gb/s

TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

Riser Card CRC1014:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

Riser Card CRC1021:

  • 1 x PCIe x4 (Gen4 x4) low-profile slot, from CPU
  • 1 x PCIe x4 (Gen4 x4) low-profile slot, from FCH

  • 1 x M.2 Slot:
  • M-key
  • PCIe Gen4 x4, from CPU
  • Supports 2242/2280 cards

  • * Select 500W power supply for 75W GPU support.

Chassis

  • 1U Enclosure

Height: 43.5 mm

Width: 430 mm

Depth: 536 mm

Power Supply

  • Single 400W 80 PLUS Gold power supply

  • Optional Part: Power supply (500W): 25EP0-20500D-F3S

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
