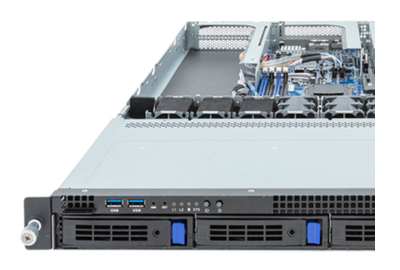

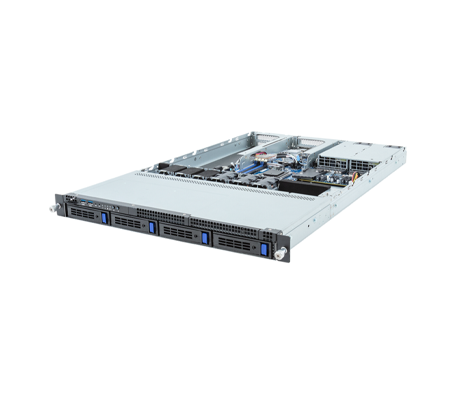

The 4-bay Gigabyte R133-C10 offers 3.5” SATA hot-swap drive bays on the front panel and 1x internal M.2 PCIe Gen4 x4 slot for 2280 and 22110 form factor cards. Supported processors feature 2-channel memory architecture supports for a total of 128GB of memory using 4x DDR5 DIMM slots. Compatible memory types include ECC UDIMM and non-ECC UDIMMs. memory speeds of up to 5600 MT/s (1DPC) are supported with AMD Ryzen 9000 CPUs or up to 5200 MT/s (1DPC) using an AMD EPYC 4004 or AMD Ryzen 7000 CPUs.
Other SKUs:
AAA1

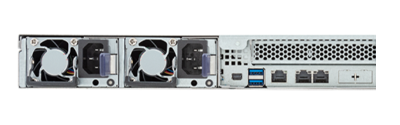

For expansion, the server supports 1x PCIe Gen4 x4 FHHL slot and 1x PCIe Gen5 x16 FHFL slot for an optional GPU. 2x 1Gb/s LAN ports via Broadcom BCM5720 are also available. To power the system, there are 1+1 550W 80 PLUS Platinum redundant power supplies on the rear panel. At the core of the R133-C10's management features are two complementary software tools. The pre-installed Gigabyte Management Console (GMC) is designed for managing individual servers, while Gigabyte Server Manager (GSM) offers centralized control and monitoring of multiple servers. Administrators can conveniently access system health and diagnostics through an intuitive, browser-based interface.
