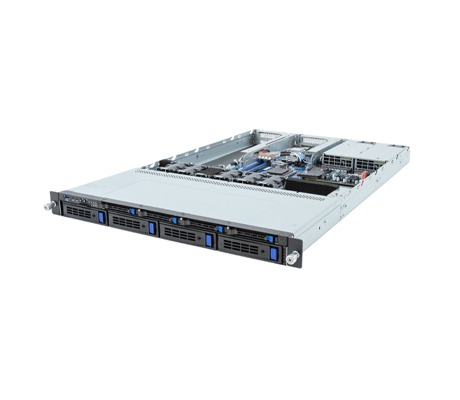

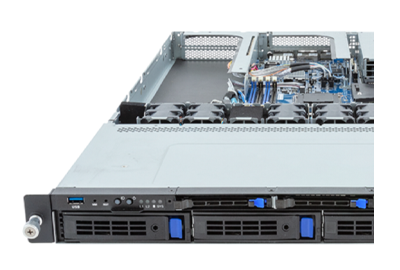

Gigabyte R133-C11 Server - System Overview
The 1U Gigabyte R133-C11 is an ideal solution for networking applications in small to medium-sized businesses (SMBs) and hosted IT service environments. With DIMM modules up to 32GB supported, the system can be outfitted with up to 128GB of memory across 4x DDR5 DIMM slots. Compatible memory inlcudes ECC and non-ECC UDIMMs. When equipped with an AMD Ryzen 9000 CPU, the system delivers memory speeds of up to 5600 MT/s (1DPC), compared to 5200 MT/s (1DPC) with an AMD EPYC 4004 or AMD Ryzen 7000 processor installed.

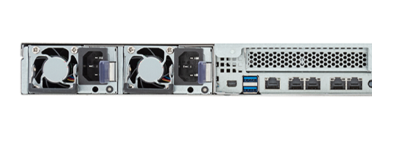

The rear of the 1U chassis gives access to 2x 10Gb/s LAN ports via Broadcom BCM57416 and 2x 1Gb/s LAN ports via Broadcom BCM5720. The system also allows administrators to access 1x PCIe Gen5 x16 FHFL slot for a GPU at up to 300W. There is also a PCIe Gen4 x4 FHHL slot. To power the machine, the rear of the chassis houses 1+1 redundant 800W 80 PLUS Platinum power supplies.
Other SKUs:
AAB1
- 1+1 800W 80 PLUS Platinum redundant PSU
AAG1
- 1+1 800W 80 PLUS Titanium redundant PSU
Gigabyte provides two complimentary management solutions. The pre-installed Gigabyte Management Console (GMC) enables efficient, local management of individual servers, while Gigabyte Server Manager (GSM) delivers centralized oversight and control across multiple systems. Both tools feature an intuitive, browser-based interface, allowing administrators to easily monitor system health, access diagnostics, and maintain operational efficiency.
