Gigabyte R133-C13 Server

The CPU features 2-channel memory architecture for support of up to 4x DDR5 UDIMMs. Memory speeds vary depending on the CPU such as up to 5600MT/s with AMD EPYC 4005 or Ryzen 9000 CPUs, and up to 5200MT/s with AMD EPYC 4004 or Ryzen 7000 CPUs. Offering 2x PCIe slots, the Gigabyte R133-C13 platform supports 1x dual-slot GPU card with a TDP of up to 300W in a PCIe Gen5 x16 FHFL slot. The other expansion slot is a PCIe Gen4 x4 FHHL slot for more networking options.

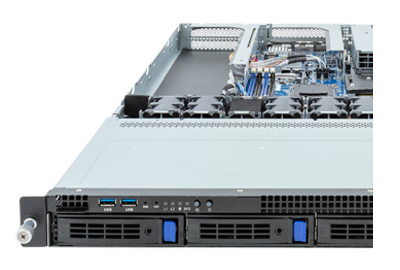

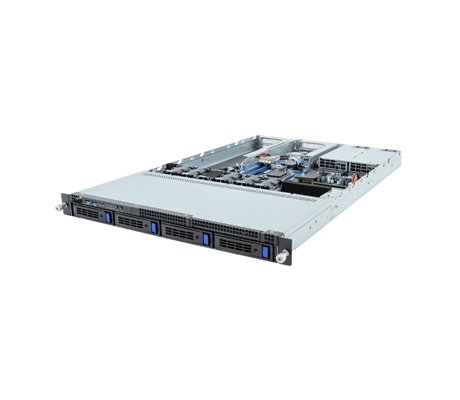

Directly under these slots, there are 2x 1Gb/s LAN ports via a Broadcom BCM5720 controller. On the front of the system there are 4x 3.5” SATA hot-swap bays, plus a single M.2 PCIe Gen4 x4 slot on the motherboard for a 2280 or 22110 form factor card. This machine is powered by 1+1 800W redundant 80 PLUS Platinum or Titanium PSUs, depending on the SKU.

Other SKUs:

AAB1

• 1+1 800W 80 PLUS Platinum redundant power supplies

• 1+1 800W 80 PLUS Titanium redundant power supplies

For managing the system, there is a dedicated LAN port to access the integrated ASPEED AST2600 Baseboard Management Controller (BMC). The Gigabyte Management Console is pre-installed by Gigabyte and offers monitoring and management of a single server of small cluster of servers. For more features, The Gigabyte Server Management (GSM) software suite can manage several large clusters of servers and offers monitoring, management, inventory, alerting and many other tools.
