Gigabyte R143-E30 Server

Featuring a single AMD EPYC 8004 series processor, the Gigabyte R143-E30 Server supports up to 1TB of memory. EPYC 8004-series CPUs support up to 64 cores and 128 threads with a maximum cTDP of up to 225W. This system supports 12x memory module slots with a 6-channel memory architecture featuring DDR5 RDIMMs at up to 96GB per slot. This system is powered by a redundant 850W Titanium or 800W Platinum power supply, depending on the model revision.
Configure

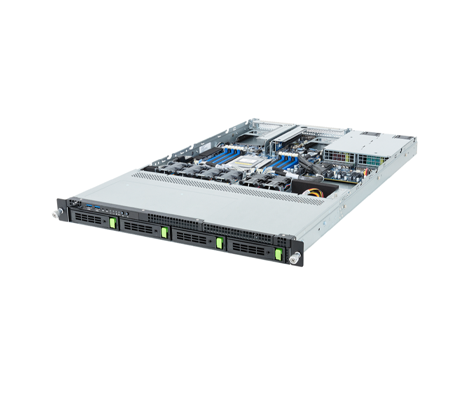

Gigabyte R143-E30 Server side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R143-E30 Server - System Overview

Gigabyte R143-E30 server front

Built for networking workloads, the R143-E30 Server features 4x 3.5" Gen5 NVMe/SATA/SAS4 hot-swappable drive bays on the front panel that are also compatible with 2.5-inch drive form factors. Under the hood, there is 1x M.2 PCIe Gen3 x4 slot for 2280 and 22110 size cards. Administrators can access 2x PCIe Gen5 x16 FHHL slots by way of 2x different riser cards. Similarly, there are 2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth.

Gigabyte R143-E30 server rear

To manage the system, users can deploy one of two Gigabyte management tools. Gigabyte Management Console, which is pre-installed can monitor and control a single system, while the Gigabyte Server Manager can manage multiple servers and is available to download.

Gigabyte R143-E30 Server (AAB1)
  • 1+1 800W 80 Plus Platinum redundant power supplies

Gigabyte R143-E30 Server (AAG1)
  • 1+1 850W 80 Plus Titanium redundant power supplies

Gigabyte R143-E30 Server - Specifications

Processor- 1 Socket

  • AMD EPYC 8004 Series Processors
  • Single processor, 5nm technology
  • Up to 64 cores, 128 threads
  • Socket: 1x LGA 4844 (Socket SP6)
  • Chipset: System on Chip
  • cTDP up to 225W

Motherboard

  • ME33-DC0

Memory

    Memory Slots

  • 12x DIMM slots
  • DDR5 memory supported only
  • 6-Channel memory architecture

    • Memory Speed

  • Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

    • DIMM Module Sizes

  • RDIMM up to 96GB supported

Drive Bays

    Front Side:

  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays

LAN

    Rear Side:
  • 2 x 1Gb/s LAN ports (1 x Intel I210-AT)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED (1x LED disabled)
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRS101V:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot

    • Riser Card CRS101W:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot

  • 2x OCP 3.0 slots with PCIe Gen5 x16 FHHL slot

    • 1 x M.2 Slot:
  • M-key
  • PCIe Gen3 x4, from CPU
  • Supports 2280/22110 cards

Chassis

    1U Enclosure

    Height: 43.5 mm

    Width: 438 mm

    Depth: 710 mm

Power Supply

    Gigabyte R143-E30 Server (AAB1)
  • 1+1 800W 80 Plus Platinum redundant power supplies

    • Gigabyte R143-E30 Server (AAG1)
  • 1+1 850W 80 Plus Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R143-E30 Server - Documentation

Gigabyte R143-E30 Server User Manual Gigabyte R143-E30 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
