Gigabyte R143-EG0 Rack Server

Housed in a 1U rackmountable chassis, the Gigabyte R143-EG0 Rack Server is compatible with a single AMD EPYC 8004 Series processor. The single socket supports 12x DDR5 DIMM slots for up to 1TB of memory at capacity. On the front of the system, there are 4x 3.5-inch Gen4 NVMe/SATA/SAS hot-swappable drive bays which support 3.5-inch or 2.5-inch drives.
Configure

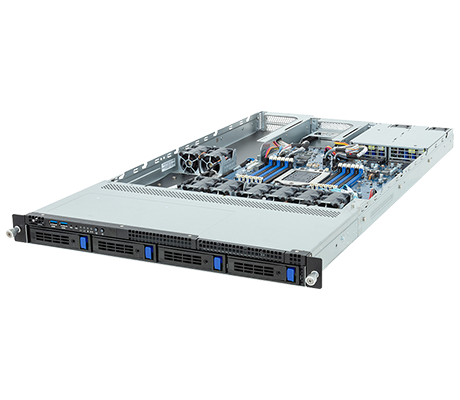

Gigabyte R143-EG0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R143-EG0 Rack Server - System Overview

Additional Information

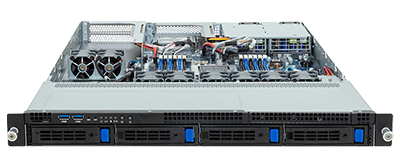

Gigabyte R143-EG0 front detail

Ideal for networking applications, the Gigabyte R143-EG0 supports a single AMD EPYC 8004 Series processor with 12x DDR5 DIMM slots. The system board houses a single M.2 slot which is a great option for fast access storage needs or OS installation. To manage this system, there is a single 10/100/1000 Management LAN port found on the rear of the system. A PCIe Gen 5.0 x16 mezzanine card slot supports a OCP 3.0 card for network communications. Gigabyte also offers some value-added management options with the Gigabyte Management Console for a single server or small cluster or the Gigabyte Server Manager for multiple servers and large clusters. System cooling is achieved by 8x high-performance fans. There are 2x 1300W 80 PLUS Platinum power supplies accessible from the rear of the system in a 1 + 1 redundant configuration.

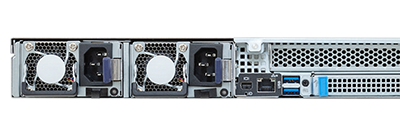

Gigabyte R143-EG0 detail top

Gigabyte R143-EG0 Rack Server - Specifications

Processor - 1 Socket

  • AMD EPYC 8004 Series processors
  • cTDP up to 225W

    • Socket:

  • 1 x LGA 4844
  • Socket SP6

Motherboard

  • MEG3-GU0

Memory

    Memory Slots

  • 12 x DDR5 DIMM slots
  • 6-Channel memory architecture

    • Memory Type

  • RDIMM

    • Memory Speed

  • Up to 4800MHz (1DPC)
  • Up to 3600MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 96GB

Drive Bays

    rev.AAC1:

  • 4 x 3.5"/2.5" SATA/SAS hot-swappable bays

    • rev.AAC1:

  • 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x Gen3 M.2 slot
  • 1 x TPM header
  • 1 x PCIe 5 x16 OCP 3.0 slot

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED (disabled)
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane:

  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional: TPM2.0 kit: CTM010

Expansion Slots

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed
  • 1 x PCIe x16 (Gen5 x16) FHHL slot

    • 1 x M.2 slots:

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2280/22110 cards

Chassis

    Height: 43.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • 1+1 1300W (240V) 80 PLUS Platinum redundant power supplies

System Cooling

  • 8 x 40x40x56mm (29,700rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R143-EG0 Rack Server - Documentation

Gigabyte R143-EG0 Rack Server User Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User's Guide 4th Gen AMD EPYC Processor Architecture AMD EPYC 8004 Series Processor Data Sheet
