Gigabyte R143-EG2 Rack Server

The Gigabyte R143-EG2 Rack Server houses a single AMD EPYC 8004 Series processor with 12x DDR5 DIMM slots. There are 12x bays in front with 4x 2.5-inch Gen4 NVMe/SATA/SAS hot-swappable drive bays along with 8x 2.5-inch SATA/SAS hot-swappable drive bays. System expansion is achieved with a single PCIe 5.0 x16 full-height, half-length slot and 2x PCIe 5.0 x16 full-height, full-length slots, one of which will be unavailable if a dual slot GPU is installed.
Configure

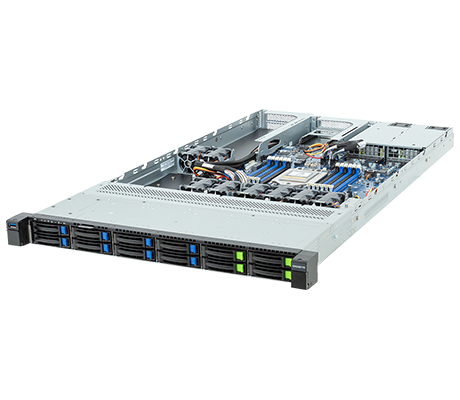

Gigabyte R143-EG2 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R143-EG2 Rack Server - System Overview

Additional Information

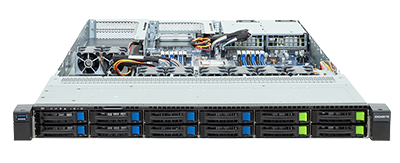

Gigabyte R143-EG2 front detail

Featuring a 1U rackmountable chassis, the Gigabyte R143-EG2 server houses a single AMD EPYC 8004 Series processor and is designed for standard networking applications. Compatible CPUs house up to 64x physical cores and 128x virtual threads. System management capabilities are provided by a single LAN port found on the rear of the chassis. A single NVMe M.2 drive can be installed using a dedicated PCIe 3.0 x4 slot on the system board for additional super-fast storage or to boot the system. Powering this system are dual 1300W 80 PLUS Platinum power supplies in a 1 + 1 redundant configuration.

Management of the system can be handled by Gigabyte’s Server Management Console for a single system or the Gigabyte Server Manager (GSM) if managing multiple servers or large clusters.

Gigabyte R143-EG2 detail top

Gigabyte R143-EG2 Rack Server - Specifications

Processor - 1 Socket

  • AMD EPYC 8004 Series processors
  • cTDP up to 225W

    • Socket:

  • 1 x LGA 4844
  • Socket SP6

Motherboard

  • MEG3-GU0

Memory

    Memory Slots

  • 12 x DDR5 DIMM slots
  • 6-Channel memory architecture

    • Memory Type

  • RDIMM

    • Memory Speed

  • Up to 4800MHz (1DPC)
  • Up to 3600MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 96GB

Drive Bays

  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x M.2 slot
  • 1 x TPM header
  • 1 x PCIe 5 x16 OCP 3.0 slot

    • Front:

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LED (disabled)
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane:

  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional: TPM2.0 kit: CTM010

Expansion Slots

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed
  • 1 x PCIe x16 (Gen5 x16) FHHL slot

    • 1 x M.2 slots:

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2280/22110 cards

Chassis

    Height: 43.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • 1+1 1300W (240V) 80 PLUS Platinum redundant power supplies

System Cooling

  • 8 x 40x40x56mm (29,700rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R143-EG2 Rack Server - Documentation

Gigabyte R143-EG2 Rack Server User Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User's Guide 4th Gen AMD EPYC Processor Architecture AMD EPYC 8004 Series Processor Data Sheet
