Gigabyte R152-Z31 Server

The Gigabyte R152-Z31 server comes in two variations, rev. 100 and rev. A00 each with different AMD EPYC series CPUs and memory types. The 1U rack server supports a single processor from either the 7001, 7002, or 7003 series depending on the revision. It features 8x 2.5" SATA hot-swappable HDD/SSD bays and 2x 2.5” NVMe hot-swappable SSD bays on the front panel. 2x optional M.2 drives can be installed using the PCIe Gen3 x4 interface under the hood. In addition, the system holds up to 4TB of memory when 256GB 3DS RDIMMs or 3DS LRDIMMs are installed. Half of this memory capacity is available using standard RDIMMs/LRDIMMs.
Configure

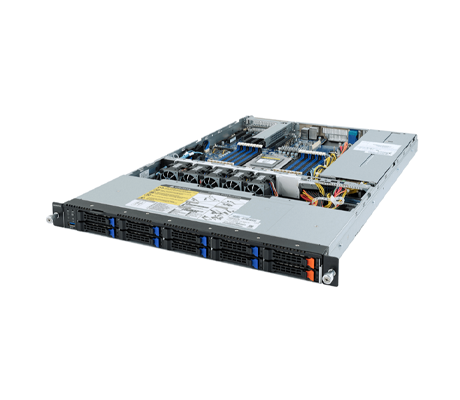

Gigabyte R152-Z31 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R152-Z31 Server - System Overview

The AMD EPYC-based system supports 1x FHHL PCIe Gen4 x16 slot, 1x OCP 2.0 Gen3 x16 mezzanine slot, and can be managed by an Aspeed AST2500 baseboard management controller (BMC). The R152-Z31 rack server is powered by dual 650W 80 PLUS Platinum redundant power supplies. This system is designed to support general networking applications including use as a general file server, a shared Internet connection, for virtualized environments, and a VPN connection for remote workers.



Gigabyte R152-Z31 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family

Gigabyte R152-Z31 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

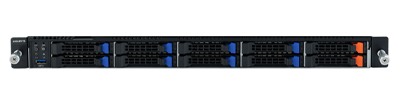

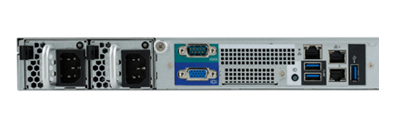

Gigabyte R152-Z31 front Gigabyte R152-Z31 rear

Gigabyte R152-Z31 Server - Specifications

Processor - 1 Socket

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 225W, cTDP up to 240W
  • Conditional support 280W

    • Socket:

  • 1 x LGA 4094

    • Chipset:

  • System on Chip

Motherboard

  • MZ32-AR0

Memory

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200/2933 MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

  • 8 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x 2.5" NVMe hot-swappable SSD bays

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 2 x M.2 slots
  • 1 x USB 3.0 header
  • 1 x USB 2.0 header
  • 1 x COM_2 header
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x HDD backplane board header
  • 1 x PMBus connector
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper
  • 1 x Buzzer

    • Front

  • 1 x USB 3.0
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 2 x LAN activity LEDs
  • 1 x System Status LED
  • 1 x Reset button
  • 1 x HDD activity LED

    • Rear

  • 3 x USB 3.0
  • 1 x VGA
  • 1 x COM
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP10A4NR-00
  • Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s, PCIe Gen3 x4

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRS101D:
  • 1 x PCIe x16 (Gen4 x16) FHHL slot

    • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
    2 x M.2 slots:
  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280 cards

Chassis

    Enclosure

    Height: 43.5mm (1.71 in)

    Width: 438mm (17.24 in)

    Depth: 660mm (25.98 in)

Power Supply

  • 2 x 650W 80 PLUS Platinum redundant PSUs

System Fans

  • 5 x 40x40x56mm (23,000rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R152-Z31 Server - Documentation

Gigabyte R152-Z31 Server User Manual Gigabyte R152-Z31 Server Data Sheet Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
