Gigabyte R162-Z10 Server

As a 1U rack system, the Gigabyte R162-Z10 server supports a single AMD EPYC processor from the 1st to the 3rd generation series families, depending on the revision. Up to 64 cores and 128 threads can power the most demanding workloads. Featuring an all NVMe 10x SFF drive bay format, this platform can also be configured with 6x SATA hot-swappable bays paired with 4x NVMe drives bays. Under the hood, the motherboard offers 3x M.2 slots with a PCIe Gen3 x4 interface for more super-fast storage or to boot the operating system.
Configure

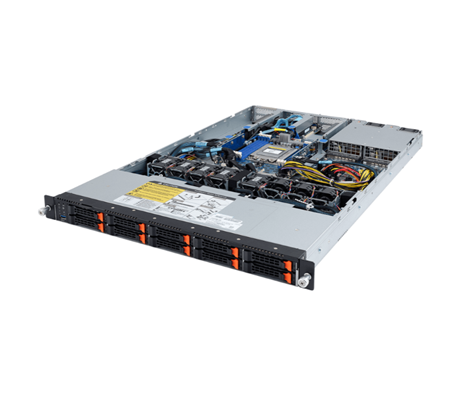

Gigabyte R162-Z10 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R162-Z10 Server - System Overview

Description

The R162-Z10 rack server holds 8x DIMM slots with an 8-channel memory architecture. It delivers up to 2TB of memory when 256GB modules populate all 8x memory module slots. Memory speeds of up to 3200MHz are supported. There are two revisions of the Gigabyte R162-Z10 server, varying in AMD EPYC series CPUs and memory types.

Gigabyte R162-Z10 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family

Gigabyte R162-Z10 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

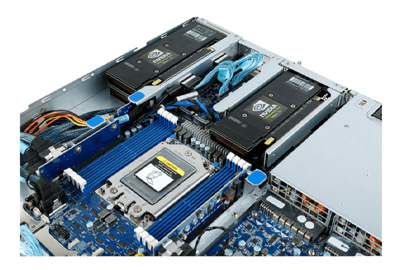

Gigabyte R162-Z10 front Gigabyte R162-Z10 NVIDIA GPUs

Available Configurations

Explore available configurations for the Gigabyte R162-Z10 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R162-Z10 Server - Specifications

Processor - 1 Socket

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 225W, cTDP up to 240W
  • Conditional support 280W (Ambient temperature limited to 30°C if using 280W CPU)

    • Chipset:

  • System on Chip

Motherboard

  • MZ12-HD2

Memory

    Memory Slots

  • 8x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200 MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

  • 6 x 2.5" NVMe/SATA/SAS hot-swappable SSD bays
  • 4 x 2.5" NVMe hot-swappable SSD bays

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • NCSI function supported
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 3 x M.2 slots
  • 1 x USB 3.0 header
  • 1 x OCP 2.0 mezzanine slot
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x Backplane board header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper

    • Front

  • 1 x USB 3.0
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 2 x LAN activity LEDs
  • 1 x System Status LED
  • 1 x Reset button
  • 1 x HDD activity LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane I/O

  • Backplane P/N: 9CBP10A1NR-00
  • Speed and bandwidth: 10 x ports for PCIe x4

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRSH01D:
  • 1 x PCIe x16 (Gen4 x16) low-profile slot

    • Riser Card CRS1060:
  • 2 x PCIe x16 (Gen3 x16) low-profile slots

    • Riser Card CMTP052:
    2 x M.2 slots:
  • 2 x M.2 slots:
  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2260/2280 cards

    • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
    1 x M.2 slot:
  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 43.5mm (1.71 in)

    Width: 438mm (17.24 in)

    Depth: 730mm (28.74 in)

Power Supply

  • 2 x 1200W 80 PLUS Platinum redundant PSUs

System Fans

  • 5 x 40x40x56mm (23,000rpm)
  • 3 x 40x40x28mm (18,000rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
