Gigabyte R162-Z11 Server

At the heart of the 1U Gigabyte R162-Z11 server is a single AMD EPYC processor from the 7001, 7002, or 7003 series families, depending on the revision. The chassis holds 8x DDR4 DIMM slots that can be equipped with up to 2TB of memory, depending on the CPU, ensuring that even the most demanding workloads don’t slow down your production. The platform has 10x drive bays that can be outfitted with SATA, SAS, and U.2 NVMe drive formats. 6X 2.5” SATA/SAS hot-swappable HDD/SSD bays and 4x 2.5” NVMe hot-swappable SSD bays can be found on the front panel. A single M.2 PCIe Gen3 x4 slot on the motherboard provides more storage or can be used to boot the OS.
Configure

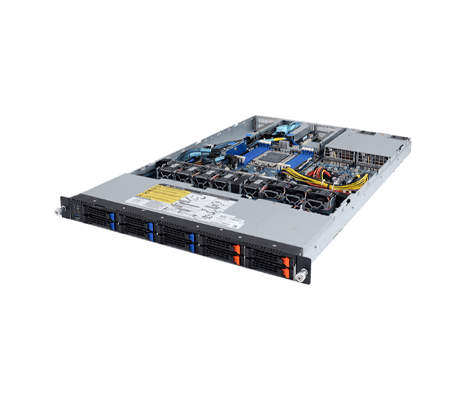

Gigabyte R162-Z11 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R162-Z11 Server - System Overview

Description

With up to 64 cores and 128 threads, this system is capable of handling even the most complex computing tasks. Ideal for artificial intelligence, high-performance computing, and networking applications, the R162-Z11 server is able to meet the unique needs of any business. Packed with features that deliver the speed, reliability, and scalability to succeed in today’s fast paced digital landscape, the system features 3x low-profile PCIe x16 slots and an OCP 2.0 Gen3 x16 mezzanine slot providing ample room for future upgrades. It can support up to 3x NVIDIA PCIe GPU cards. This platform has 2x revisions, varying in processor families and memory module support, and is powered by dual redundant 1200W 80 PLUS Platinum PSUs. SAS drives will require the installation of a SAS RAID card.

Gigabyte R162-Z11 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family
  • RDIMM/LRDIMM modules up to 128GB supported

Gigabyte R162-Z11 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

Gigabyte R162-Z11 front Gigabyte R162-Z11 NVIDIA GPUs

Gigabyte R162-Z11 Server - Specifications

Processor - 1 Socket

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 225W, cTDP up to 240W
  • Conditional support 280W
  • NVIDIA Tesla GPU not supported if using 280W CPU

    • Chipset:

  • System on Chip

Motherboard

  • MZ12-HD2 Rev. 3.0

Memory

    Memory Slots

  • 8x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200 MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

  • 6 x 2.5" SATA/SAS* hot-swappable HDD/SSD bays
  • 4 x 2.5" NVMe hot-swappable SSD bays

    • *SAS card is required for SAS devices support

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • NCSI function supported
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slots
  • 1 x USB 3.0 header
  • 1 x OCP 2.0 mezzanine slot
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x Backplane board header
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper

    • Front

  • 1 x USB 3.0
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 2 x LAN activity LEDs
  • 1 x System Status LED
  • 1 x Reset button
  • 1 x HDD activity LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane I/O

  • Backplane P/N: 9CBP10A1NR-00
  • Speed and bandwidth: 10 x ports for PCIe x4

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRSH01D:
  • 1 x PCIe x16 (Gen4 x16) low-profile slot

    • Riser Card CRS1060:
  • 2 x PCIe x16 (Gen3 x16) low-profile slots

    • 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
    1 x M.2 slot:
  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2242/2260/2280/22110 cards
  • CPU TDP is limited to 155W if using M.2 device

Chassis

    Enclosure

    Height: 43.5mm (1.71 in)

    Width: 438mm (17.24 in)

    Depth: 730mm (28.74 in)

Power Supply

  • 2 x 1200W 80 PLUS Platinum redundant PSUs

System Fans

  • 5 x 40x40x56mm (23,000rpm)
  • 3 x 40x40x28mm (18,000rpm)

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R162-Z11 Server - Documentation

Gigabyte R162-Z11 Server User Manual Gigabyte R162-Z11 Server Data Sheet Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
