The Gigabyte R163-P32 Server is powered by a single 5nm technology AmpereOne Family processor with up to 192 custom cores and a maximum TDP of up to 400W. Up to 8TB of memory are delivered by 512GB ECC DDR5 DIMM modules, when all 16x DIMM slots are filled. The system supports an 8-channel memory architecture and memory speeds up to 4800MHz. 12x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays are located on the front panel. A SAS card is required for SAS devices support.

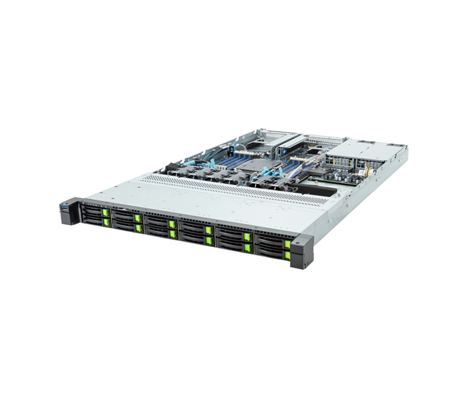

Gigabyte R163-P32 Server - System Overview
Built for networking applications, the Gigabyte R163-P32 Server excels as a virtual server, hosting an Intranet, file access via VPN and use as a shared Internet connection. Featuring an ARM-based architecture, AmpereOne CPUs are focused on cloud service providers providing a 1:1 ratio of cores to threads, which is geared towards cloud-native workloads. On the other hand, x86 CPUs provide simultaneous multithreading (SMT), which result in better performance for multi-threaded applications. The 12-bay, 1U Gigabyte R163-P32 Server delivers 1 x 1Gb/s LAN port and a backplane supporting PCIe Gen4 x4, SATA 6Gb/s, or SAS 12Gb/s.
The system offers 2x riser cards for PCIe x16 (Gen5 x16) FHHL slots, plus 2x OCP 3.0 slots with a PCIe Gen5 bandwidth. In addition to these expansion slots, the motherboard holds a single M.2 PCIe Gen5 x4 slot for 2280 and 22110 form factor cards. The back of the chassis features 1+1 1300W 80 PLUS Platinum redundant power supplies and a single MLAN port to allow administrators to centrally manage all devices on the network. The Gigabyte Management Console is pre-installed and allows Administrators to manage a single system or a small cluster. As soon as the program becomes operational, administrators can use it to monitor and manage the health of each server in real time. For multi-server applications and large server clusters, Gigabyte offers the Gigabyte Server Manager.
Gigabyte R163-P32 Server - Specifications
Processor- 1 Socket
AmpereOne Family
Single processor, 5nm technology
Up to 192 custom cores per processor
TDP up to 400W
Socket: 1x LGA 5964
Chipset: System on Chip
Motherboard
MP33-DC0
Memory
Memory Slots
16x DDR5 DIMM slots
8-Channel memory architecture
Memory Speed
Up to 4800MHz
DIMM Module Sizes
ECC DIMM modules up to 512GB supported
Drive Bays
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
LAN
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x M.2 slot
1 x TPM header
1 x OCP 3.0 slot

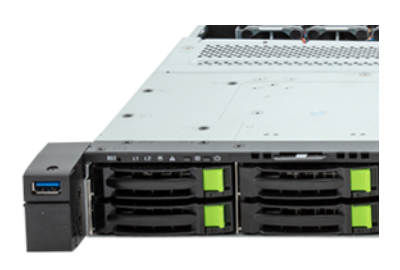

Front
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
1 x HDD Activity LED

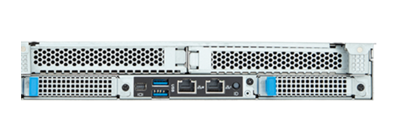

Rear
2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane
Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRS101O:
1 x PCIe x16 (Gen5 x16) FHHL slots
Riser Card CRS101P:
1 x PCIe x16 (Gen5 x16) FHHL slot
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, occupied for NVMe connection
1 x M.2 PCIe Gen5 x4 slot; Supports 2280/22110 cards
Chassis
Enclosure
Height: 43.5 mm
Width: 438 mm
Depth: 710 mm
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
