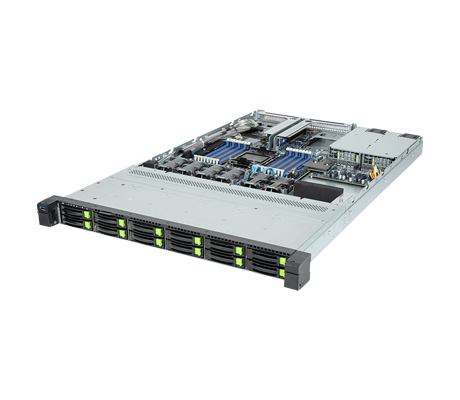

The Gigabyte R163-S35 Server supports a single 4th or 5th Generation Intel Xeon Scalable processor or an Intel Xeon CPU Max Series processor, with a maximum thermal design power (TDP) of 350W. It features 8-channel memory architecture that can accommodate up to 4TB of memory with 256GB 3DS RDIMMs across all 16x DIMM slots, or up to 1TB using 96GB standard RDIMMs.

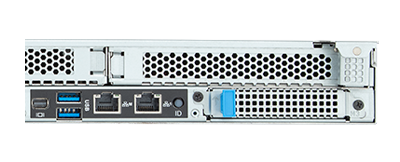

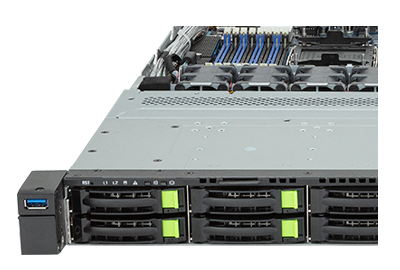

With 5th Generation CPUs, memory speeds can reach up to 5600 MT/s, while 4th Generation and Max Series CPUs support speeds up to 4800 MT/s. The Gigabyte R163-S35 Server’s, 1U chassis offers 12x front-mounted 2.5” drive bays compatible with Gen5 NVMe, SATA, or SAS4 configurations. SAS devices require an additional SAS HD controller card. To boot the operating system, the motherboard features a single M.2 slot with a PCIe Gen3 x4 interface for 2280/22110 cards. Additionally, administrators have access to 1x FHHL PCIe Gen5 x16 slot via a riser card and 1x OCP 3.0 Gen5 x16 slot accessible from the rear of the server.
Supported workloads for this system include Networking and use as a hybrid/private cloud server. Like all Gigabyte servers, the R163-S35 comes with the Gigabyte Management Console pre-installed, ideal for managing individual systems or small clusters. For larger deployments, Gigabyte provides the Gigabyte Server Management (GSM) tool, which enables real-time monitoring and management of server health through an intuitive, browser-based graphical interface. The platform is available in two revisions, each offering different power supply options:
Gigabyte R163-S35 Server (rev. AAC1):
1+1 1300W 80 PLUS Platinum redundant power supplies
Gigabyte R163-S35 Server (rev. AAH1):
1+1 1300W 80 PLUS Titanium redundant power supplies
Gigabyte R163-S35 Server - Specifications
Processor - Single Socket
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
CPU TDP up to 350W
1 x LGA 4677, Socket E
Intel C741
Motherboard: MS33-DC0
Memory
16x DIMM slots
DDR5 memory supported
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel Xeon: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup.
Drive Bays
Front Hot-Swap:
12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
*SAS card is required to support SAS drives.
LAN
Rear Side:
1 x 1Gb/s LAN port (1 x Intel I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
Power Supplies
1+1 1300W 80 PLUS Platinum redundant power supplies
