Gigabyte R163-SG0 Server

The single-socket Gigabyte R163-SG0 server supports 4x drive bays on the front of the 1U chassis. Lime green tabs designate the four 3.5-inch bays, which can accommodate 3.5-inch or 2.5-inch Gen5 NVMe, SATA, or SAS4 hot-swappable drives. The motherboard has 1x PCIe Gen3 x4 interface that can be used to support an NVMe M.2 2280 or 22110 form factor drive for additional storage or to boot the operating system. Three PCIe 5.0 x16 FHFL extension slots and one additional OCP 3.0 PCIe Gen5 x16 slot for an optional NIC are provided. The system also supports a single FHFL PCIe Gen5 x16 for a dual slot GPU card from either AMD, NVIDIA, Qualcomm, or XILINX.
Configure

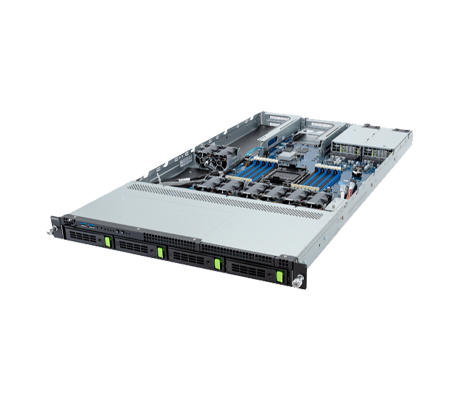

Gigabyte R163-SG0 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R163-SG0 Server - System Overview

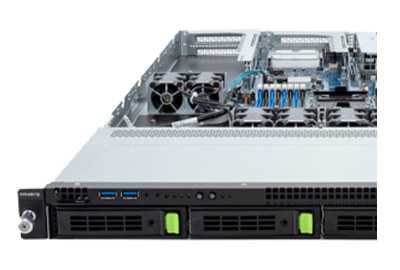

Gigabyte R163-SG0 drives

Either a 4th or 5th generation Intel Xeon Scalable processor or Intel Xeon CPU Max series CPU is supported with a thermal design power (TDP) power rating of up to 350W. The system can be equipped with Intel Xeon Platinum, Intel Xeon Gold, or Intel Xeon Silver Processors with up to 64 cores. It has 8-channel memory architecture and can be outfitted with up to 16x DDR5 DIMMs with 2x DIMMs per channel. When loaded to capacity with 128GB RDIMMs in each memory module slot, the system can accommodate up to 2TB of memory. Up to 4TB of RAM is possible with the installation of 3DS RDIMMs in all available slots—a twofold increase. The maximum memory speed is 4800MHz but memory speed is dependent on the CPU, configuration, and installed memory modules.

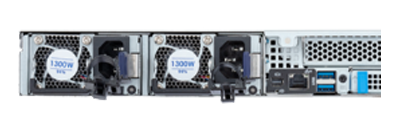

Gigabyte R163-SG0 rear

Gigabyte R163-SG0 Server - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Intel Xeon CPU Max Series
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • Single processor
  • Up to 64-core, 128 threads per processor
  • TDP up to 350W

    • Chipset:

  • 1 x LGA 4677 - Socket E

Motherboard

  • MSG3-GU0

Memory

    Memory Slots

  • 16x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4, from PCH
  • Supports NGFF-2280/22110 cards

LAN

  • Rear side: 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slots
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x OCP 3.0 slot

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs (disabled)
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane I/O

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRS102B:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed

    • Riser Card CRS101U:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth

Chassis

    Enclosure

    Height: 43.5mm (1.71 in)

    Width: 438mm (17.24 in)

    Depth: 815mm (32.08 in)

Power Supply

  • 2x 1300W 80 PLUS Platinum redundant power supply

System Fans

  • 8 x 40x40x56mm (32,000rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R163-SG0 Server - Documentation

Gigabyte R163-SG0 Server Data Sheet Gigabyte R163-SG0 Server User Manual Gigabyte Easy BIOS Refresh Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
