Gigabyte R163-SG2 Server

The Gigabyte R163-SG2 server has single-socket design supporting a 4th or 5th generation Intel Xeon Scalable processor or an Intel Xeon CPU Max series CPU. Intel Xeon Scalable Platinum, Gold or Silver can be loaded into the server with Platinum processors providing the highest core count at up to 64 physical cores and 128 virtual threads. With the powerful performance of these processors, the system offers an 8-channel memory architecture with up to 16x DDR5 memory module slots supporting 2x DIMMs per channel. Up to 2TB of memory is supported using 128GB Registered (RDIMM) memory modules in all slots or up to 4TB with 256GB 3DS RDIMMs in all slots. Memory speeds range between 4800MHz to 4400MHz depending on CPU, Configuration and memory modules.
Configure

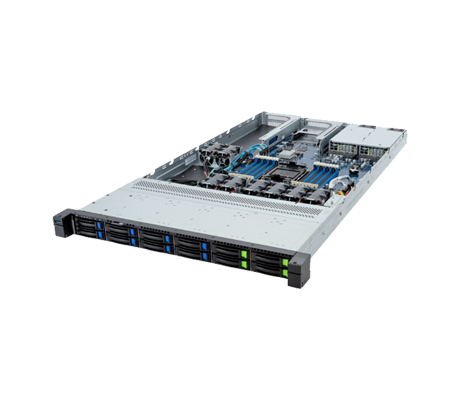

Gigabyte R163-SG2 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R163-SG2 Server - System Overview

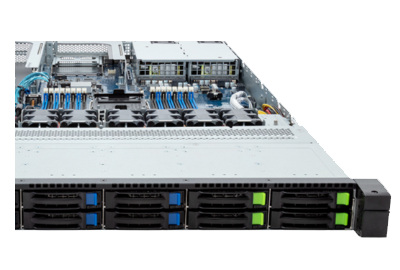

Gigabyte R163-SG2 drives

On the front side of the 1U R163-SG2 server there are a total of 12x drive bays. Four bays are distinguished by lime green tabs, which support 2.5” Gen5 NVMe, SATA, or SAS4 hot-swappable bays. An additional 8x 2.5” drives, marked by blue tabs, can deploy SATA/SAS4 hot-swappable drives. For more storage, or to boot the operating system, the motherboard offers 1x M.2 PCIe Gen3 x4 slot supporting 2280 or 22110 form factors. The PCIe 5.0 ready platform features 3x FHFL PCIe x16 expansion slots and an additional OCP 3.0 Gen5 x16 slot for an optional NIC. The system can also support a single FHFL PCIe Gen5 x16 slot for a double-wide GPU card from the following manufacturers: AMD, NVIDIA, Qualcomm, or XILINX. This chassis is designed for high-performance computing applications covering a number of different industries including content producers, data scientists, researchers, and engineers.

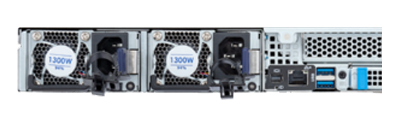

Gigabyte R163-SG2 rear

Gigabyte R163-SG2 Server - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Intel Xeon CPU Max Series
  • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
  • Single processor
  • Up to 64-core, 128 threads per processor
  • TDP up to 350W

    • Chipset:

  • 1 x LGA 4677 - Socket E

Motherboard

  • MSG3-GU0

Memory

    Memory Slots

  • 16x DDR5 DIMM slots
  • 8-Channel memory architecture

    • Memory Speed

  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

    Front Side
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 8 x 2.5" SATA/SAS4 hot-swappable bays

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4, from PCH
  • Supports 2280/22110 cards

LAN

  • Rear side: 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slots
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x OCP 3.0 slot

    • Front

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs (disabled)
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane I/O

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRS102B:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed

    • Riser Card CRS101U:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth

Chassis

    Enclosure

    Height: 43.5mm (1.71 in)

    Width: 438mm (17.24 in)

    Depth: 815mm (32.08 in)

Power Supply

  • 2x 1300W 80 PLUS Platinum redundant power supply

System Fans

  • 8 x 40x40x56mm (32,000rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R163-SG2 Server - Documentation

Gigabyte R163-SG2 Server Data Sheet Gigabyte R163-SG2 Server User Manual Gigabyte Easy BIOS Refresh Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
