Gigabyte R164-S30 Server

At 1U, the Gigabyte R164-S30 server supports a single Intel Xeon 6 series processor with a maximum TDP of 350W. It is compatible with various Intel Xeon 6 series processors including, the 6700 series with E-cores, the 6700 series with P-cores, and the 6500 series with P-cores. Built for networking and hybrid/private cloud applications, this machine features 4x drive bays that accommodate 3.5” or 2.5” Gen5 NVMe, SATA, or SAS4 drives.
Configure

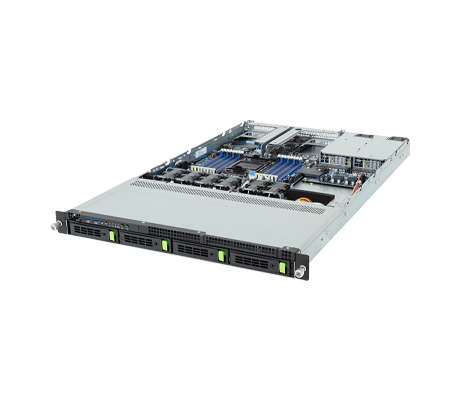

Gigabyte R164-S30 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R164-S30 Server - System Overview

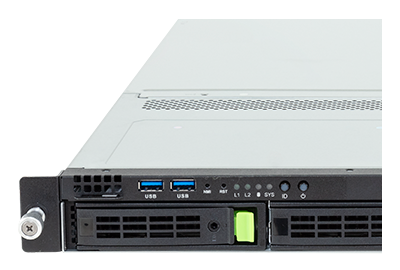

Gigabyte R164-S30 server front

The R164-S30 server features 2x M.2 slots (2280/22110) with a PCIe Gen5 x2 interface, however, one of them is shared with a SATA drive. The M.2 drives can be used to boot the system in a mirrored RAID. It is possible to install up to 16x DDR5 RDIMMs at up to 6400 MT/s or Multiplexor Combined Ranks (MCR) DIMMs at up to 8000 MT/s. Only Intel Xeon 6 Processors with P-cores and in a 1DPC configuration are compatible with MCR DIMMs. Two riser cards with 1x PCIe Gen5 x16 FHHL slot each can be deployed. There are also 2x PCIe Gen5 x16 OCP NIC 3.0 slots available.

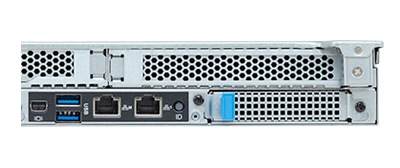

Gigabyte R164-S30 server rear I/O

Administrators can utilize Gigabyte Server Management (GSM) or the Gigabyte Management Console (GMC) to monitor the platform both locally or remotely. Using a regular browser, they offer information on an HTML 5 user interface for data on hard drives, inventories, power consumption, and can be configured to provide alerts.

Available Configurations

Explore available configurations for the Gigabyte R164-S30 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R164-S30 Server - Specifications

Processor - Single Socket

    Intel Xeon 6 Processors
  • Intel Xeon 6700E-Series Processors
  • Intel Xeon 6700P-Series Processors (available Q1'25)
  • Intel Xeon 6500P-Series Processors (available Q1'25)

  • CPU TDP up to 350W
  • 1 x LGA 4710, Socket E2
  • System on Chip
  • Motherboard: MS34-DC0

Memory

  • 16x DIMM slots
  • DDR5 memory supported
  • MCR DIMM supported
  • 8-Channel memory architecture
  • RDIMM: Up to 6400MT/s (1DPC), 5200MT/s (2DPC)
  • MCR DIMM: Up to 8000 MT/s

    • *MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

Drive Bays

    Front Hot-Swap:
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
    • *SAS card is required to support SAS drives.

    Internal M.2:
  • 1 x M.2 (2280/22110), PCIe Gen5 x2
  • 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with front SATA

LAN

  • 1 x 1Gb/s LAN (1 x Intel® I210-AT)
  • Supports NCSI function

  • 1 x 10/100/1000 Mbps Management LAN

Power Supplies

  • Dual 800W 80 PLUS Titanium redundant power supply

I/O

    Front I/O

  • 2 x USB 3.2 Gen1 ports (Type-A)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs (1 x LED disabled)
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1 ports (Type-A)
  • 1 x Mini-DP
  • 2 x RJ45 port
  • 1 x MLAN port
  • 1 x ID button with LED

    • Backplane I/O

  • PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

    Riser Card CRS101O:
  • 1 x FHHL x16 (Gen5 x16)

    • Riser Card CRS101P:
  • 1 x FHHL x16 (Gen5 x16)

  • 2 x OCP NIC 3.0 (Gen5 x16)
  • Support NCSI function

Dimensions

    Height: 43.5mm (1.71")
    Width: 438mm (17.32")
    Depth: 710mm (27.95")

Gigabyte R164-S30 Server - Documentation

Gigabyte R164-S30 Server Data Sheet Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
