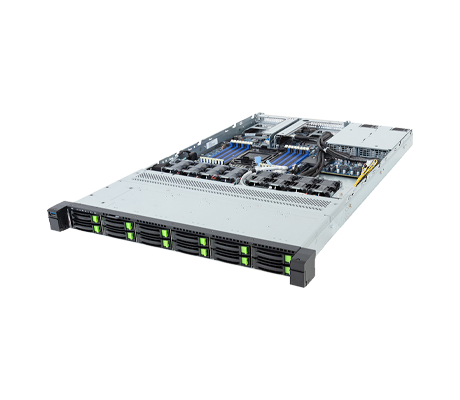

Gigabyte R164-S32 Server

The Gigabyte R164-S32 server is an Intel-based system designed for networking and hybrid/private cloud applications. This system supports Intel Xeon 6 6700 series processors with E-cores, Intel Xeon 6 6700 series processors with P-cores, plus Intel Xeon 6 6500 series processors with P-cores. With a single CPU, it supports 16x DDR5 RDIMMs running at speeds of up to 6400 MT/s, or Multiplexor Combined Ranks (MCR) DIMMs with up to 8000 MT/s. MCR DIMMs are only supported with Intel Xeon 6 Processors with P-cores and in a 1DPC configuration.

Overview

Gigabyte R164-S32 Server - System Overview

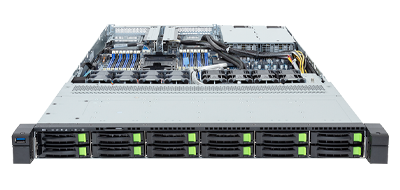

At 1U, the Gigabyte R164-S32 server is equipped with 12x 2.5” hot-swap drive bays on the front panel, which can be configured with NVMe Gen5, SATA, or SAS4 drives. Under the hood, there are 2x M.2 slots with a PCIe Gen5 x2 interface supporting 2280 or 22110 cards, one is shared with a front SATA drive. A single PCIe Gen5 x16 FHHL slot is mounted on a riser card, plus an additional 1x PCIe Gen5 x16 OCP NIC 3.0 slot also available. The system is powered by 1+1 redundant 1300W 80 PLUS Titanium power supplies.

Several management software utilities can be deployed to monitor the R164-S32 server including Gigabyte’s Management Console (GMC) and Gigabyte Server Management (GSM). These programs allow administrators to monitor and control servers, both locally and remotely. They provide an HTML 5 user interface using a standard browser and provide information on inventory, power utilization, hard drives and can be configured to send alerts.

Specifications

Gigabyte R164-S32 Server - Specifications

Processor - Single Socket

Intel Xeon 6700E-Series Processors
Intel Xeon 6700P-Series Processors (available Q1'25)
Intel Xeon 6500P-Series Processors (available Q1'25)

CPU TDP up to 350W
1 x LGA 4710, Socket E2
System on Chip
Motherboard: MS34-DC0

Memory

16x DIMM slots
DDR5 memory supported
MCR DIMM supported
8-Channel memory architecture
RDIMM: Up to 6400MT/s (1DPC), 5200MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

Drive Bays

12 x 2.5" Gen5 NVMe/SATA/SAS-4

1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA

LAN

Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Power Supplies

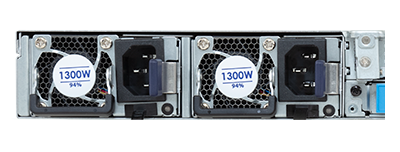

1+1 1300W 80 PLUS Titanium redundant power supplies

I/O

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 port
1 x MLAN port
1 x ID button with LED

Backplane I/O

PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

1 x FHHL x16 (Gen5 x16)

1 x OCP NIC 3.0 (Gen5 x16)
Support NCSI function

Dimensions

Documentation

Gigabyte R164-S32 Server - Documentation

Gigabyte R164-S32 Server Data Sheet Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
