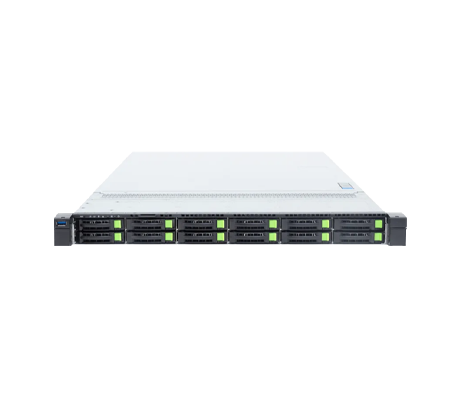

Gigabyte R165-DG2 Server

Featuring a single AMD EPYC 9006 series CPU, the Gigabyte R165-DG2 Server is designed to address AI, Visual Computing, networking, use as a hybrid/private cloud server, and AI inference. With 16-channel memory architecture, and 16x memory module slots memory can operate at peak memory speeds of up to 8000MT/s using DDR5 RDIMMs or up to 12800MT/s using Multiplexed Rank DIMMs (MRDIMM). MRDIMMs are only compatible with CPUs that offer performance cores.

Overview

Gigabyte R165-DG2 Server - System Overview

Additional Information

Package Power Tracking (PPT) is listed at up to 600W, as well as the Thermal Design Power (TDP) rating, which is also at 600W. PPT defines the actual peak electrical power to the socket, not the upper boundary of heat generation during intense computing tasks. These processors can provide up to 256 cores enabling more virtual machines (VMs) and more tasks can run simultaneously. Memory bandwidth with AMD EPYC 9006 series CPUs is listed at 1.6TB/s with 1DPC with MRDIMMs. There are options for cooing this system with several revisions, which include Direct liquid Cooling

Chassis Configurations

Gigabyte R165-DG2-CS1
CPU Closed Loop Direct Liquid Cooling (DLC), 1x CPU, PPT up to 600W

Gigabyte R165-DG2-AS1
Air Cooling, 1x CPU, PPT up to 500W

Gigabyte R165-DG2-CS2

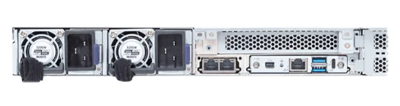

CPU + GPU Closed Loop Direct Liquid Cooling, 1x CPU, PPT up to 600W R165-DG2 rear panel

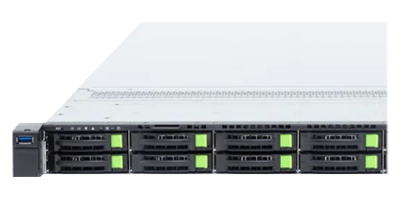

There are 12x 2.5-inch Gen5 NVMe/SATA /SAS-4 hot-swap bays along the front of the chassis, plus 2x PCIe gen4 x2 PCIe slots for 2x M.2 drive that can be used to boot the system. With 3x PCIe 6.0 x16 slots there are 2x full-height, full-length slots and 1x full-height, half-length slot on the Gigabyte R165-DG2 Server. PCIe 6.0 also doubles the bandwidth compared to PCIe 5.0 from 4GB/s per lane in each direction to 8GB/s per lane in each direction, respectively. This system supports a single dual-slot Gen6 GPU. The system is powered by dual 3200W 80 PLUS Titanium redundant power supply units (PSU).

Available Configurations

Explore available configurations for the Gigabyte R165-DG2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Specifications

Gigabyte R165-DG2 Server - Specifications

Processor

- AMD EPYC 9006 SP7 Server CPUs
- Single processor, PPT up to 600W

- Socket: 1x LGA 7536, Socket SP7
- Motherboard: MDG5-GU0
- Chipset: Integrated into SoC

Memory

- 16x DIMM slots
- Support DDR5 RDIMM/MRDIMM
- 16-Channel memory per processor

- RDIMM: Up to 8000MT/s
- MRDIMM: Up to 12800MT/s

*MRDIMMs are supported only on select CPU SKUs

Storage

Front hot-swap:
- 12x 2.5" Gen5 NVMe/SATA/SAS4

Internal M.2:
- 2x M.2 (2280/22110), PCIe Gen4 x2

*Storage card(s) required to support SATA and SAS drives

LAN

Rear (LAN board):
- 2x 1 Gb/s LAN (1 x Intel I350-AM2)
- Support NCSI function

Rear (DC-SCM):
- 1x Management LAN

Expansion Slots

- 1x FHFL x16 (Gen6 x16), for GPUs
- 1x FHFL x16 (Gen6 x16)*
- 1x FHHL x16 (Gen6 x16)

*Blocked when a dual-slot GPU is installed

Front I/O

- 1x USB 3.2 Gen1 port (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x Reset button
- 2x LAN activity LEDs
- 1x Storage activity LED
- 1x System status LED

Rear I/O

LAN Board:
- 2x RJ45 ports

DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED

Power Supply

- 2 x 3200W 80 PLUS Titanium redundant power supplies

Documentation

Gigabyte R165-DG2 Server - Documentation

Gigabyte R165-DG2-AS1 Server Data Sheet Gigabyte R165-DG2-CS1 Server Data Sheet
