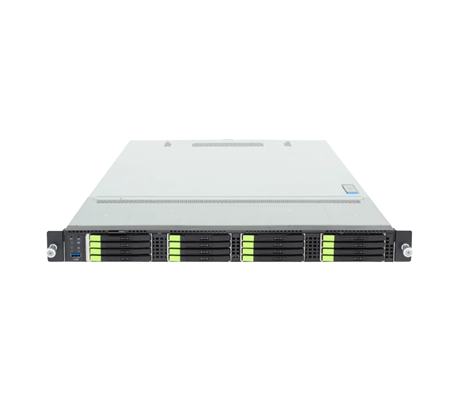

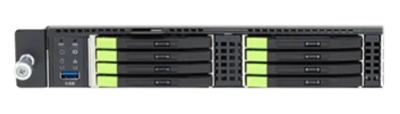

Additional InformationPowered by dual 3200W 80 Plus Titanium redundant power supplies, the Gigabyte R165-DG3 Server can support processors with up to 256 physical cores and 512 virtual threads. There are 16x front drive bays for E3.S Gen6 NVMe hot-swap drive bays. For expansion there are 2x PCIe gen6 x16 slots with one full-height, half-length slot and one full-height, full-length slot that can be outfitted with 1x dual-slot Gen6 GPU. There are 2x PCIe gen4 x2 slots on the system board for NVMe M.2 drives that can be used to boot the system. There are two different versions of this server.
Chassis Configurations
R165-DG3-CS1
CPU Closed-Loop, Direct Liquid Cooling (DLC)
R165-DG3-CS2
CPU + GPU Closed-Loop, Direct Liquid Cooling (DLC)
The system has 2x 1Gb/s LAN ports on the back of the chassis for basic network communications. For management, monitoring and security in data center environments it supports a Data Center Secure Control Module. (DC-SCM).
Explore available configurations for the Gigabyte R165-DG3 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- 1x AMD EPYC 9006 SP7 Server processors
- 256 cores/ 512 threads
- 16-Channel DDR5 RDIMM/MRDIMM per CPU with 16x DIMMs
- 16x E3.S Gen6 NVMe hot-swap bays
- 2x M.2 slots with PCIe Gen4 x2
- 1x FHFL PCIe x16 slot with Gen6 x16 lanes for GPUs
- 1x FHHL PCIe x16 slot with Gen6 x16 lanes
- 2x 1 Gb/s LAN ports via Intel I350-AM2
- Supports 1x dual-slot Gen6 GPU
R165-DG3-CS1
- CPU closed-loop DLC solution with leak detection
R165-DG3-CS2
- CPU+GPU closed-loop DLC solution with leak detection
- 2x 3200 W 80 PLUS Titanium redundant power supplies
