The AMD EPYC 9006 SP8 series processors are mainstream CPUs that offer cost-optimized platform scaling. They provide 8 to 128 cores and up to 256 virtual threads. With 8-channel memory architecture and 16x DIMM slots, this system can be outfitted with 2x DIMMs per Channel (2DPC). Memory speeds of 8000MT/s are supported using RDIMMs or up to 12800MT/s using Multiplexed Rank DIMMs (MRDIMM). However, MRDIMMs can only be installed 1x DIMM per Channel (1DPC).

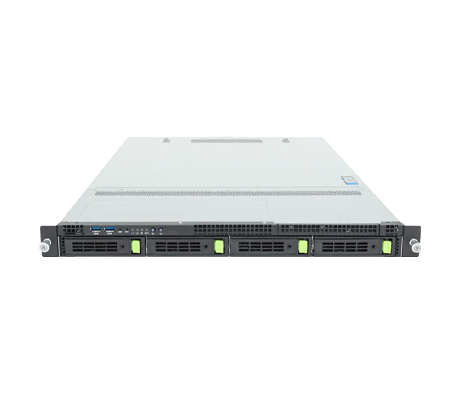

In addition to the upfront storage drives, the Gigabyte R165-Z30-AG1 Server has 2x slots on the system board for M.2 drives, which can be used for additional storage or to boot the system. For additional expansion options, the system features 2x full-height, half-length PCIe Gen6 x16 slots and an OCP NIC 3.0 also with a PCIe Gen6 x16 connector. The system is powered by dual redundant 1600W 80 Plus Titanium power supply units.
Explore available configurations for the Gigabyte R165-Z30 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Single AMD EPYC 9006 SP8 Server processors
- 128 cores/ 256 threads
- 8-Channel DDR5 RDIMM/MRDIMM per CPU with 16 x DIMMs
- 4x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swap bays
- 2x M.2 slots with PCIe Gen4 x2
- 2x FHHL PCIe x16 slots with Gen6 x16 lanes
- 2x OCP NIC 3.0 PCIe Gen6 x16 slots
- 2x 1600 W 80 PLUS Titanium redundant power supplies
Choose components, get instant pricing, and build the perfect server in minutes.
Fast, simple, and completely transparent!
