Gigabyte R182-34A Server

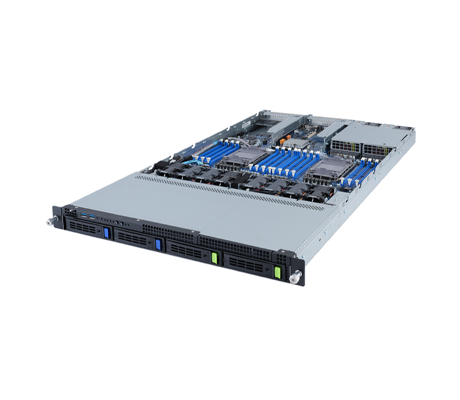

The Gigabyte R182-34A server supports two 3rd Generation Intel Xeon Scalable processors, code named “Ice Lake.” These CPUs support up to 40 cores and a TDP of up to 205W. Featuring an 8-channel memory architecture, beneath the lid, the machine has 16x DDR4 DIMM slots. When all slots are populated with 256GB 3DS RDIMM/LRDIMM modules, it can support up to 4TB of memory as opposed to only 2TB of RAM when standard RDIMMs or LRDIMMs are installed. On the front panel, the system delivers 2x 3.5" SATA, SAS, or Gen4 NVMe hot-swappable drive bays plus two more 3.5" SATA or SAS drive bays.

Gigabyte R182-34A Server - System Overview

If installing SAS drive types, a SAS card is required. 2x 7-pin SATA DOM are supported as well as 2x FHHL PCIe Gen4 x16 slots, all powered by dual 800W 80 PLUS Platinum PSUs. The R182-34A server is ideally deployed as a networking appliance for virtual servers, hosting an intranet, and use as a file storage server, among other business-critical applications.

Gigabyte R182-34A Server - Specifications

Processor - 2 Sockets

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 205W

Socket:

2 x LGA 4189, Socket P+

Chipset:

Intel C621A Chipset

Motherboard

MR92-FS2

Memory

16x DDR4 DIMM slots
8-Channel memory architecture

Memory Type

RDIMM
LRDIMM
3DS LRDIMM
3DS RDIMM
DCPMM

Memory Speed

1.2V modules: 3200/2933/2666 MHz

DIMM Module Sizes

RDIMM/LRDIMM: Up to 128GB
3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

2 x 3.5"/2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
2 x 3.5"/2.5" SATA/SAS hot-swappable HDD/SSD bays

LAN

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x USB 3.0 header
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

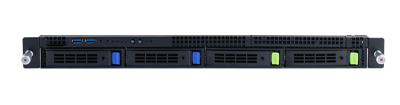

Front

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI Button
1 x HDD activity LED
1 x System status LED
1 x Reset button

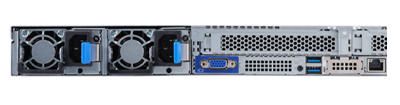

Rear

2 x USB 3.0
1 x VGA
2 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM 2.0 kit: CTM010

Expansion Slots

1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0

1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Chassis

Height: 43.5mm (1.712 in)

Width: 438mm (17.244 in)

Depth: 780mm (30.708 in)

Power Supply

2 x 800W redundant 80 PLUS Platinum power supply

System Fans

5 x 40x40x56mm (29,700rpm)
3 x 40x40x28mm (25,000rpm)

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
