The 12-bay Gigabyte R183-P92 server is ideal for networking applications supported by dual AmpereOne processors. AmpereOne CPUs have a focus on cloud service providers. They also deliver an 8-channel memory architecture for a total of 32x DDR5 DIMM slots with support for 512GB RDIMM modules for a potential of up to 16TB of DDR5 memory. The front of the system holds 12x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays but a SAS card is required for SAS devices support.

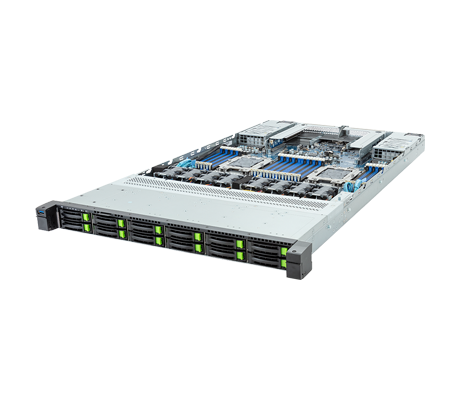

Gigabyte R183-P92 Server - System Overview
Unlike x86 CPUs with simultaneous multithreading (SMT), these CPUs have a 1:1 ratio of cores to threads. The AmpereOne family starts at 136 cores and goes up to 192 cores with a TDP of up to 400W per CPU. The 1U platform has 1x M.2 slot with a PCIe Gen5 x4 interface and support for 2280 or 22110 cards. The Gigabyte R183-P92 server offers 2x PCIe Gen5 x16 FHHL slots on risers, plus 2x OCP 3.0 slots with a PCIe Gen5 x16 bandwidth for additional I/O that won’t detract from the PCIe slots. A 1+1 2000W 80 PLUS Platinum redundant power supplies can also be found on the rear of the chassis, next to the expansion slots. In addition, the machine supports 2x 1Gb/s LAN ports via an Intel I350-AM2 connection and a dedicated RJ45 management port. The Gigabyte Management Console, pre-installed on all servers, can be used to monitor and maintain a single system or a small cluster of servers. For data center applications with multiple servers or large clusters, the Gigabyte Server Manager (GSM) provides more extensive tools to manage the system.
Gigabyte R183-P92 Server - Specifications
Processor- 2 Sockets
AmpereOne Family
Dual processor, 5nm technology
Up to 192 custom cores per processor
TDP up to 400W
Socket: 2 x LGA 5964
Motherboard
MP93-FS0
Memory
Memory Slots
32x DDR4 DIMM slots
8-Channel memory architecture
Memory Speed
Up to 4800 MHz
DIMM Module Sizes
RDIMM modules up to 512GB supported
Drive Bays
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
(8 x NVMe from CPU_0, 4 x NVMe from CPU_1)
(SATA from CPU_1)
LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp
Input / Output
Internal
1 x M.2 slot
1 x TPM header
2 x OCP 3.0 Slots
Front
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

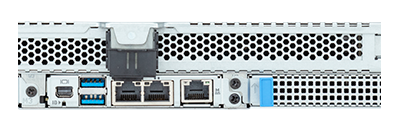

Rear
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRS101J:
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
Riser Card CRS101K:
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 Slot
PCIe Gen5 x4, from CPU_0
Supports 2280/22110 cards
Chassis
Enclosure
Height: 43.5 mm
Width: 438 mm
Depth: 815 mm
Power Supply
1+1 2000W (240V) 80 PLUS Platinum redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
