Gigabyte R183-S90 Server

At 1U, the Gigabyte R183-S90 Server supports dual 4th or 5th generation Intel Xeon Scalable processors and Intel’s Xeon CPU Max series which deliver even better CPU performance and performance per watt than previous generations. The PCIe 5.0 ready platform features 2x PCIe x16 expansion slots and an additional 2x OCP 3.0 x16 slots for optional NICs. The R183-S90 system processors offers an 8-channel DDR5 memory architecture for up to 8TB of RAM in 32x DIMM slots. 4x SFF or LFF hot-swappable drive bays on the front panel support Gen4 NVMe, SATA or SAS configurations depending on the revision. This server also supports Intel Optane Persistent 300 series memory modules (PMem).
Configure

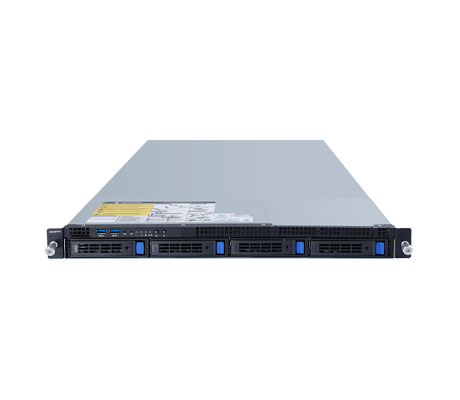

Gigabyte R183-S90 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-S90 Server - System Overview

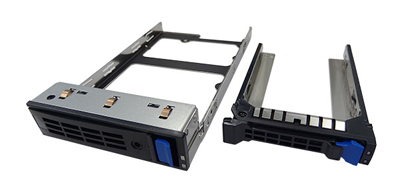

Gigabyte R183-S90 server drive cages

This platform is ideal for networking applications including file storage, and for use as a shared internet connection, virtual server, and Intranet host. There are 4 revisions: rev. AAD1, rev. AAD2, rev. AAV1, rev. AAV2.

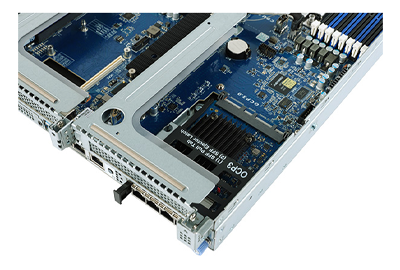

Gigabyte R183-S90 server OCP 3.0

Gigabyte R183-S90 Server (rev. AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S90 Server (rev. AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S90 Server (rev. AAV1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Gigabyte R183-S90 Server (rev. AAV2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Gigabyte R183-S90 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Up to 64 cores, 128 threads
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset
  • CPU TDP up to 350W

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R183-S90 (rev.AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-S90 (rev.AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays

    • Gigabyte R183-S90 (rev.AAV1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-S90 (rev.AAV2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R183-S90 (rev.AAD1):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R183-S90 (rev.AAD2):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R183-S90 (rev.AAV1):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • Gigabyte R183-S90 (rev.AAV2):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 8 x 40x40x56mm (32,000rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP1047NR-00
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101J:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")
