Gigabyte R183-S91 Server

Powered by two 4th or 5th generation Intel Xeon Scalable processors with up to 64 cores each, the Gigabyte R183-S91 Server delivers 8x drive bays with different form factors. Four SFF or LFF Gen4 NVMe, SATA, or SAS hot-swappable drive bays line the bottom of the front panel, marked by green tabs. Just above those are 4x SFF 9.5mm Gen4 NVMe, SATA, or SAS hot-swappable drive bays, also marked by smaller green tabs. With both CPUs installed, the R183-S91 server supports 32x DDR5 memory module slots for up to 8TB of memory. This system also supports Intel Optane Persistent 300 series memory modules (PMem).
Configure

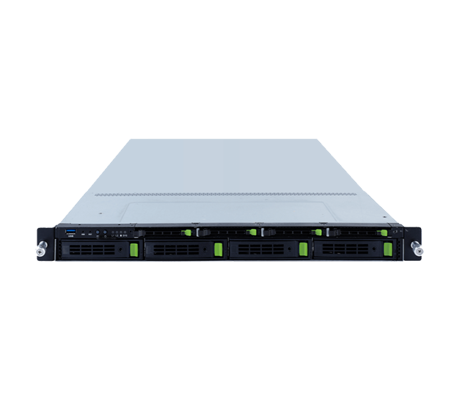

Gigabyte R183-S91 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-S91 Server - System Overview

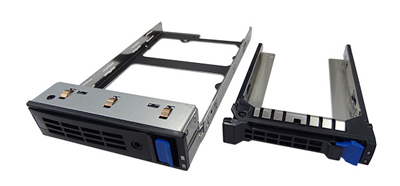

Gigabyte R183-S91 server drive cages

Designed to power through networking applications, this platform can be used as a shared internet connection, virtual server, and Intranet host. There are 4 revisions: rev. AAD1, rev. AAD2, rev. AAV1, rev. AAV2.

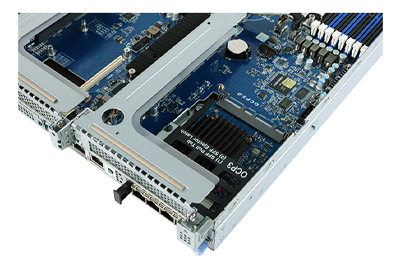

Gigabyte R183-S91 server OCP 3.0

Gigabyte R183-S91 Server (rev. AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S91 Server (rev. AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S91 Server (rev. AAV1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Gigabyte R183-S91 Server (rev. AAV2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Available Configurations

Explore available configurations for the Gigabyte R183-S91 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R183-S91 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Up to 64 cores, 128 threads
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset
  • CPU TDP up to 350W

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R183-S91 (rev.AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-S91 (rev.AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays

    • Gigabyte R183-S91 (rev.AAV1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-S91 (rev.AAV2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R183-S91 (rev.AAD1):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R183-S91 (rev.AAD2):
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R183-S91 (rev.AAV1):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • Gigabyte R183-S91 (rev.AAV2):
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 8 x 40x40x56mm (32,000rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP1045NR-00 and 9CBP1047NR-00
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101J:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101K:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R183-S91 Server - Documentation

Gigabyte R183-S91 Server Data Sheet Gigabyte R183-S91 Server User Manual Gigabyte R183-S91 Server Qualified Vender List Gigabyte R183-S91 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide
