Gigabyte R183-S93 Server

Outfitted with dual CPUs, the 1U Gigabyte R183-S93 server supports 4th or 5th generation Intel Xeon Scalable processors from either the Platinum, Gold, or Silver families, as well as Intel Xeon CPU Max series. CPUs with a maximum TDP of up to 350W can be installed. Offering 8-channel DDR5 memory architecture per socket, the chassis holds up to 32x DDR5 DIMMs for up to 8TB of RAM when all memory slots are populated to capacity with 3DS RDIMMs. Standard RDIMMs will support up to 4TB of memory. On the front of the R183-S93, there are 4x 3.5” hot-swappable drive bays compatible with 3.5” or 2.5” SAS or SATA drives.

Gigabyte R183-S93 Server - System Overview

There are 3 revisions to this server with slight differences.

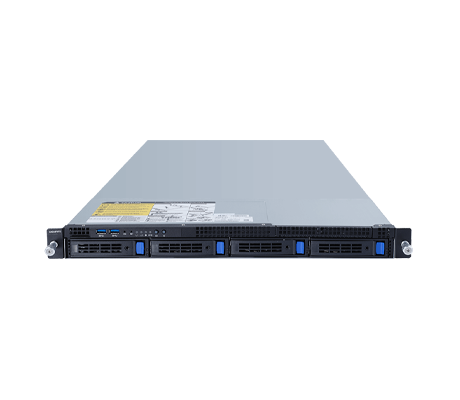

Gigabyte R183-S93 Server (rev. AAB1):

4 x 3.5/2.5" SATA/SAS hot-swappable bays
Dual 800W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S93 Server (rev. AAC1):

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S93 Server (rev. AAC2):

4 x 3.5/2.5" SATA/SAS hot-swappable bays
Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-S93 Server - Specifications

Processor - Dual-Sockets

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Up to 64 cores, 128 threads
2 x LGA 4677, Socket E
Intel® C741 Chipset
CPU TDP up to 350W

Memory

32x DIMM slots
DDR5 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

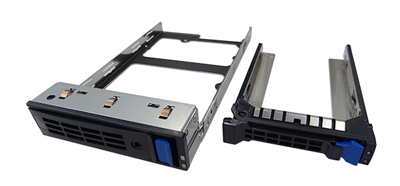

Drive Bays

4 x 3.5/2.5" SATA/SAS hot-swappable bays

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

4 x 3.5/2.5" SATA/SAS hot-swappable bays

Power Supplies

Dual 800W (240V) 80 PLUS Platinum redundant power supply

Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Fans

8 x 40x40x56mm (32,000rpm)

I/O

Per Node:

1 x TPM Header
2 x OCP 3.0 mezzanine slots

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED
1 x HDD activity LED
1 x System status LED

Rear I/O

Per Node:

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Backplane P/N: 9CBP1047NR-00
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

Riser Card CRS101J:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

Riser Card CRS101Q:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

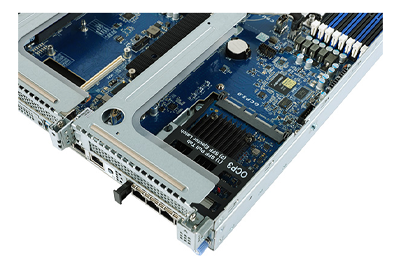

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
(1 x from CPU_0 and 1 x from CPU_1)
Supported NCSI function
