Gigabyte R183-S97 Server

At 1U, the Gigabyte R183-S97 Server supports dual 4th or 5th Generation Intel Xeon Scalable processors, plus the Intel Xeon CPU Max Series. These CPUs support a TDP of up to 350W on an Intel C741 chipset. It is equipped with 6x 9.5mm E1.S NVMe and 8x 2.5" Gen5 NVMe/SATA/SAS4 drive bays on the front panel. The system is powered by 1+1 redundant 1600W 80 PLUS Titanium power supplies.
Configure

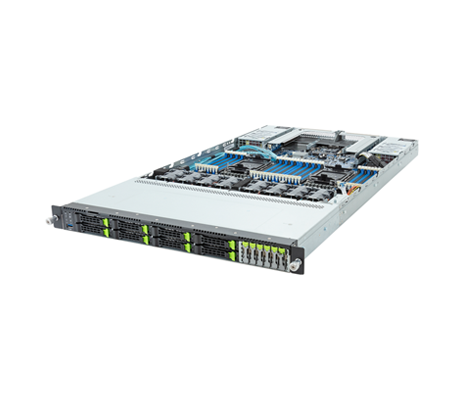

Gigabyte R183-S97 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-S97 Server - System Overview

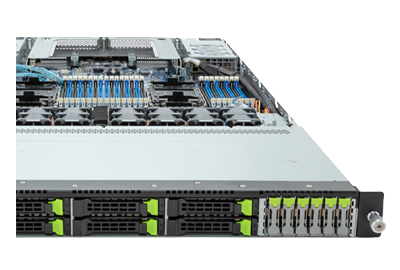

Gigabyte R183-S97 server front

This system can accommodate 2x risers, each with 1x FHHL Gen5 x16, plus 2x OCP NIC 3.0 Gen5 x16 mezzanine card slots. Designed for networking and hybrid/private cloud server applications, the supported CPUs feature an 8-channel memory architecture for up to 32x DDR5 memory module slots divided between both sockets. Depending on the processor installed, memory speeds range from 4400 MT/s to 5600 MT/s.

5th Gen Intel Xeon:

  • RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel Xeon:

  • RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel Xeon Max Series:

  • RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

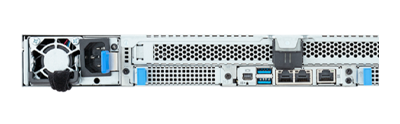

Gigabyte R183-S97 server rear

The R183-S97 server can be monitored and managed using Gigabyte’s Management Console (GMC) or Gigabyte Server Management (GSM) software. These tools support both local and remote administration and feature an intuitive HTML5 interface accessible through any standard web browser. Users can track hardware inventory, monitor power usage, check drive status, and configure system alerts with ease.

Gigabyte R183-S97 Server - Specifications

Processor - Dual Sockets

  • 2x 5th Gen Intel Xeon Scalable CPUs
  • 2x 4th Gen Intel Xeon Scalable CPUs
  • TDP up to 350W
  • 2x LGA 4677, Socket E
  • Motherboard: MS93-FS0
  • Chipset: Intel C741

Memory

  • 32x DIMM slots
  • DDR5 memory supported
  • 8-Channel memory per processor

    • 5th Gen Intel Xeon:

  • RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

    • 4th Gen Intel Xeon:

  • RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

    • Intel Xeon Max Series:

  • RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Drive Bays

    Front Hot-Swap:

  • 6 x 9.5mm E1.S NVMe
  • 8 x 2.5" Gen5 NVMe/SATA/SAS4

    • *SAS card is required to enable SAS drives

Power Supplies

  • 1+1 1600W 80 PLUS Titanium redundant power supplies

I/O

    Front I/O

  • 1 x USB 3.2 Gen1 (Type-A)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear I/O

    G-SCM board - CDCR112:

  • 2 x USB 3.2 Gen1 (Type-A)
  • 1 x Mini-DP
  • 2 x RJ45 ports
  • 1 x MLAN port
  • 1 x ID LED

    • Backplane Board

    Speed and Bandwidth:

  • PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

    Riser Card CRS101J:

  • 1 x FHHL x16 (Gen5 x16), from CPU_0

    • Riser Card CRS101K:

  • 1 x FHHL x16 (Gen5 x16), from CPU_1

  • 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
  • Supports NCSI function

  • 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
  • Supports NCSI function

Dimensions

    Form Factor: 1U
    Height: 43.5mm (1.71")
    Width: 448mm (17.63")
    Depth: 815mm (32.08")

Gigabyte R183-S97 Server - Documentation

Gigabyte R183-S97 Server Data Sheet Gigabyte R183-S97 Server User Manual Gigabyte Server Management Console User Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte GSM Server Installation & Configuration Guide
